RX2520 M5 Operating Manual 63
5.4.3.2 Using the cable clamp
You can secure the power cord with a cable clamp to ensure that the power cord
cannot be disconnected from the server by mistake. The cable clamp is
included in the accessories pack that is delivered together with the server.

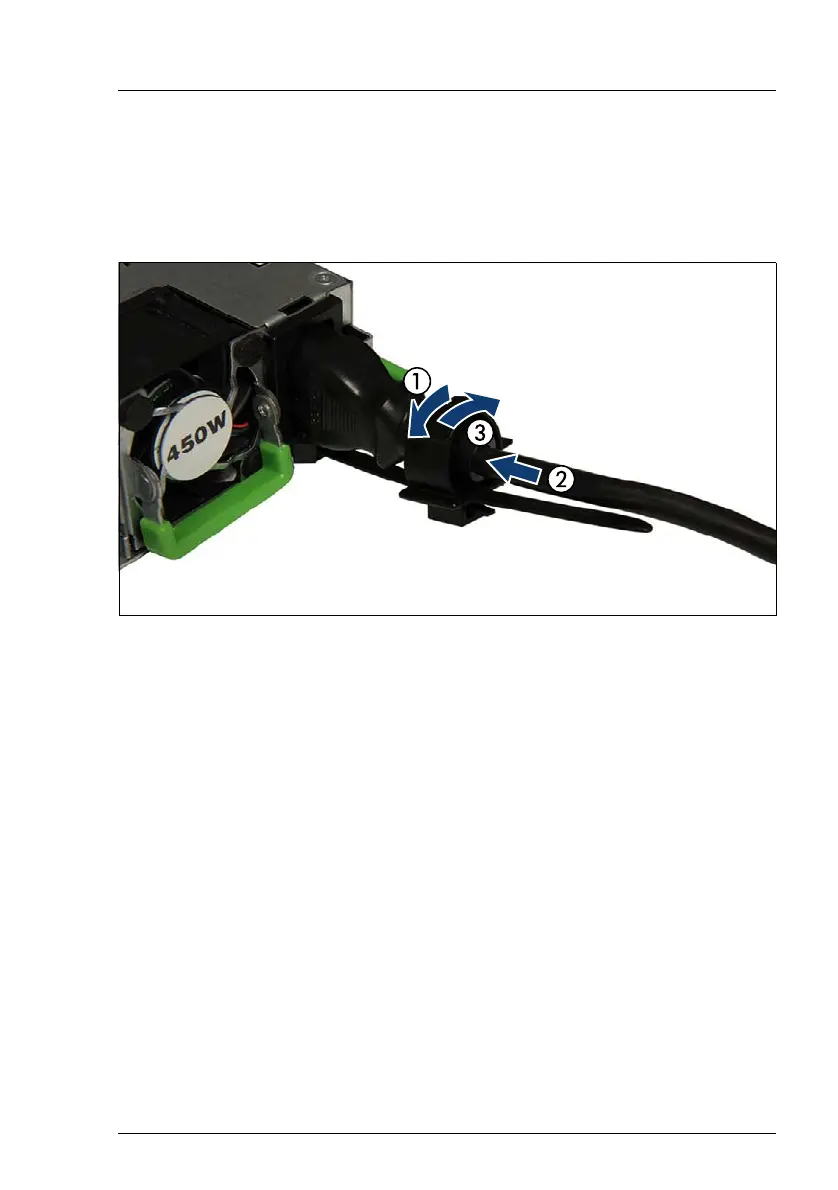

Figure 20: Using cable clamps
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
