78 Operating Manual RX2520 M5
6.3 Installing a second PSU
6.3.1 Removing the dummy cover

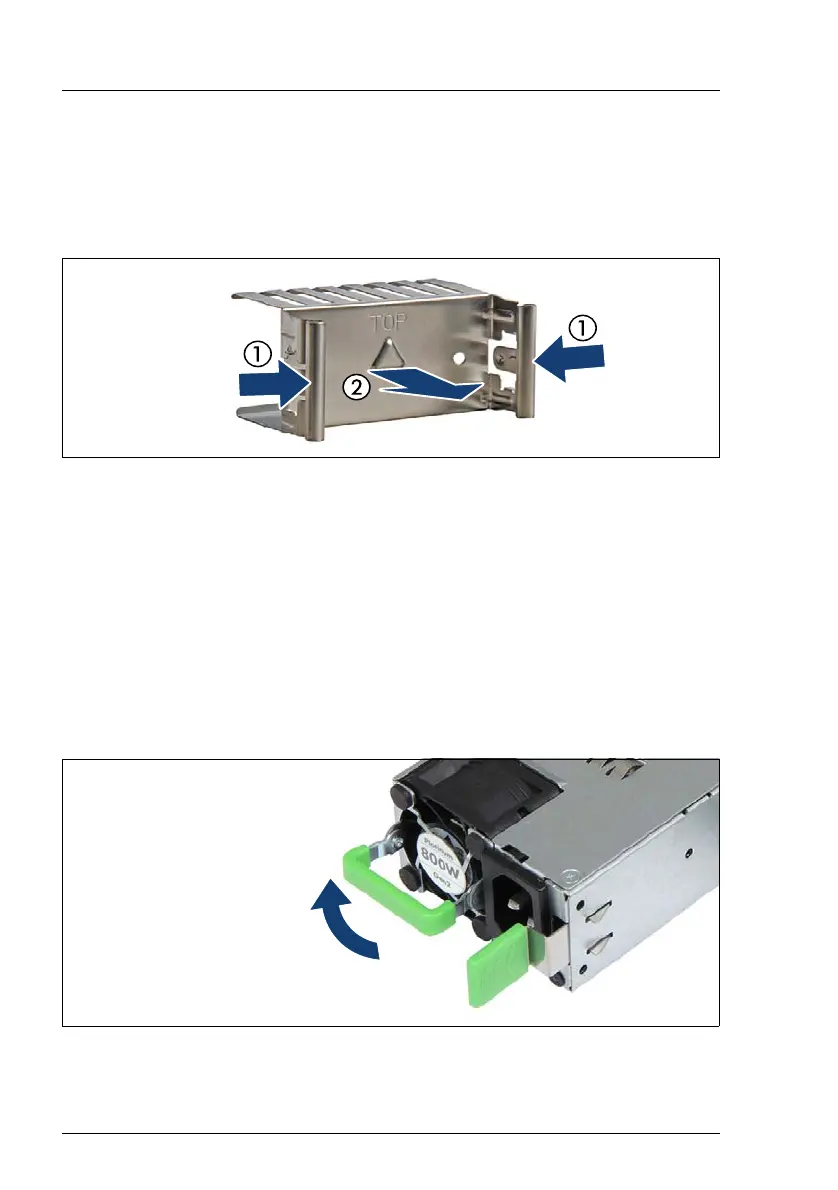

Figure 27: Removing the PSU dummy cover
Ê Press in on both release latches (1) and remove the dummy cover (2).
V CAUTION!
Keep the dummy cover for future use. If a PSU is removed and not
immediately replaced by a new one, a dummy cover must be installed in
the bay again to comply with applicable EMC regulations and satisfy
cooling requirements.
6.3.2 Installing a PSU
Figure 28: Folding up the handle
Ê Push the handle of the PSU halfway upward in the direction of the arrow.
