RX2520 M5 Operating Manual 77

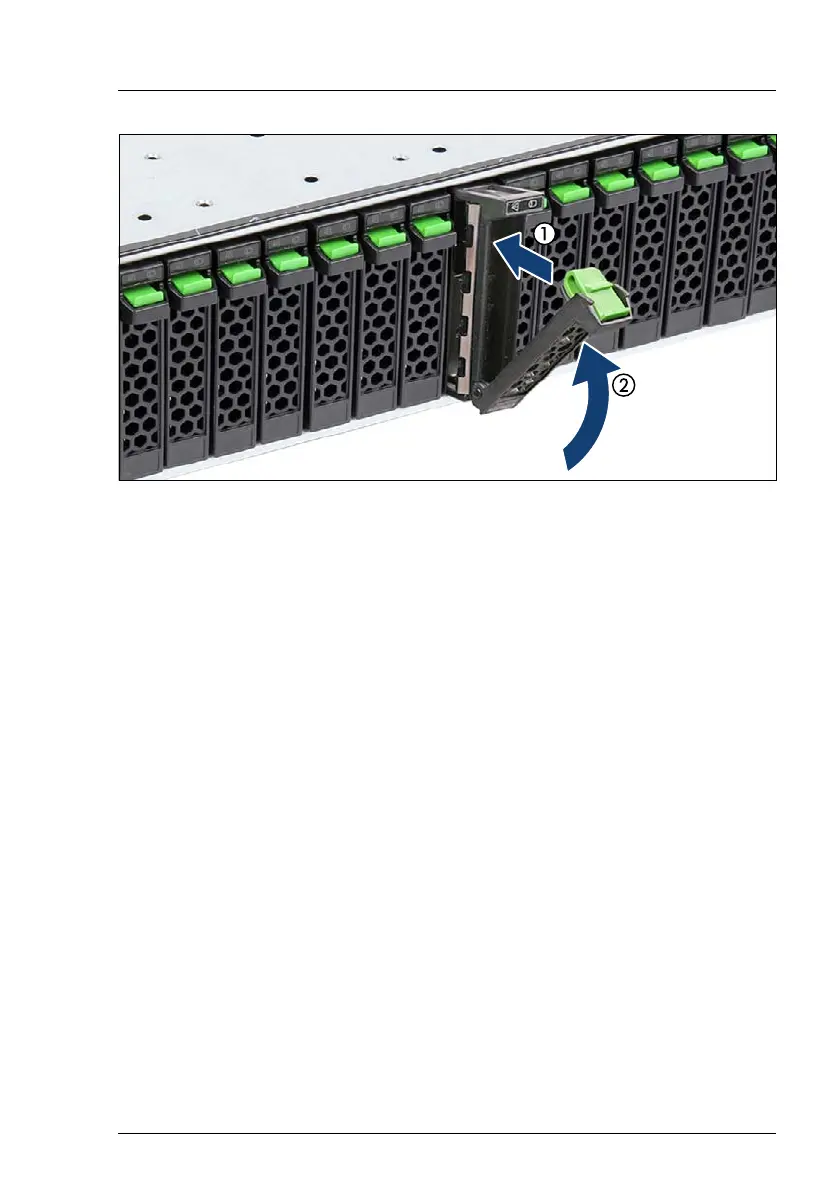

Figure 26: Installing the 2.5-inch HDD/SSD module
Ê Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
Ê Close the locking lever to lock the HDD/SSD module in place (2).
Ê When using a RAID array, add the additional HDD/SSD to the RAID array.
I Configuring the RAID array, see the documentation of the RAID
controller, used in your configuration, see section "Documentation
overview" on page 11.
