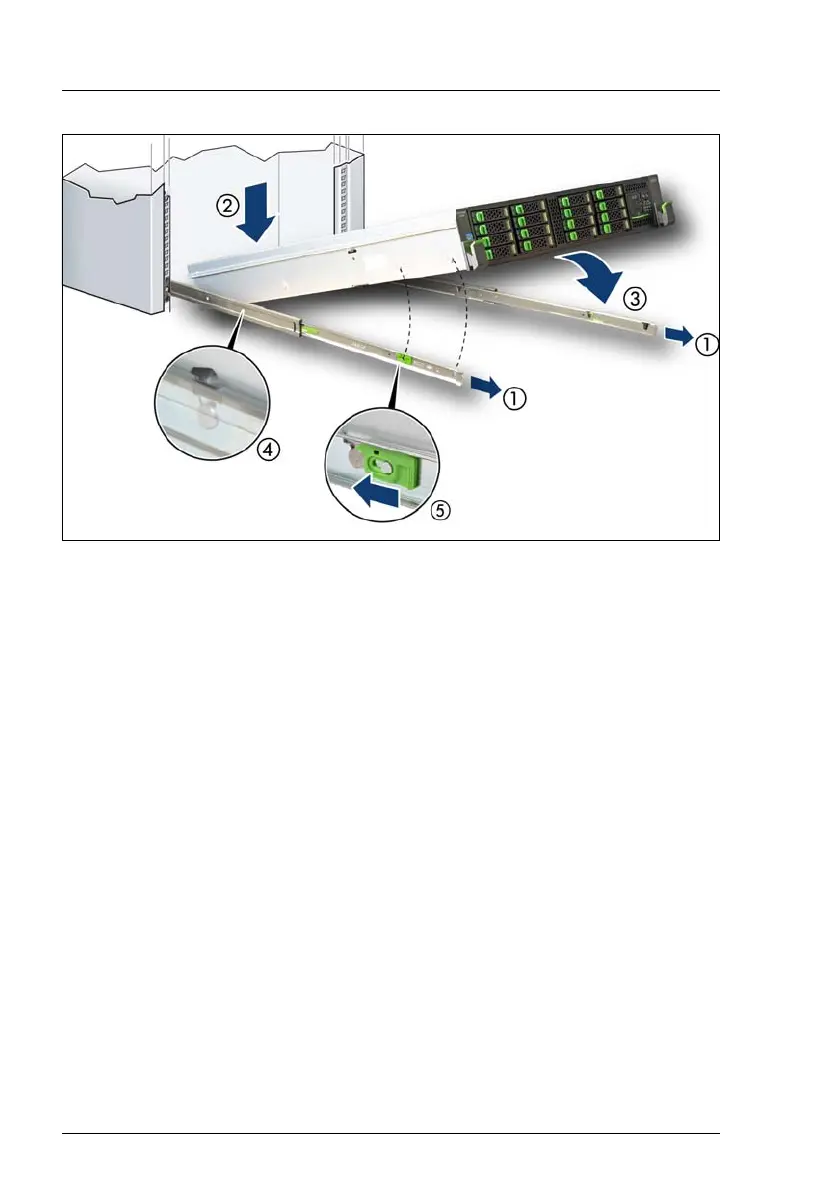

Figure 18: Mounting the server onto the rack rails
Ê Completely extend the rack rails until they lock in place (1).
I The rack rails must click into place so that they can no longer be
moved.
Ê At a slight angle, lower the server onto the rear mounting point on the rack
rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
fitted in the mounting points on the rack rails (4) and that the locking bars
engage (5).
