RX300 S5 Service Supplement 43
Replacement routines Replacing the IDTemp Combo

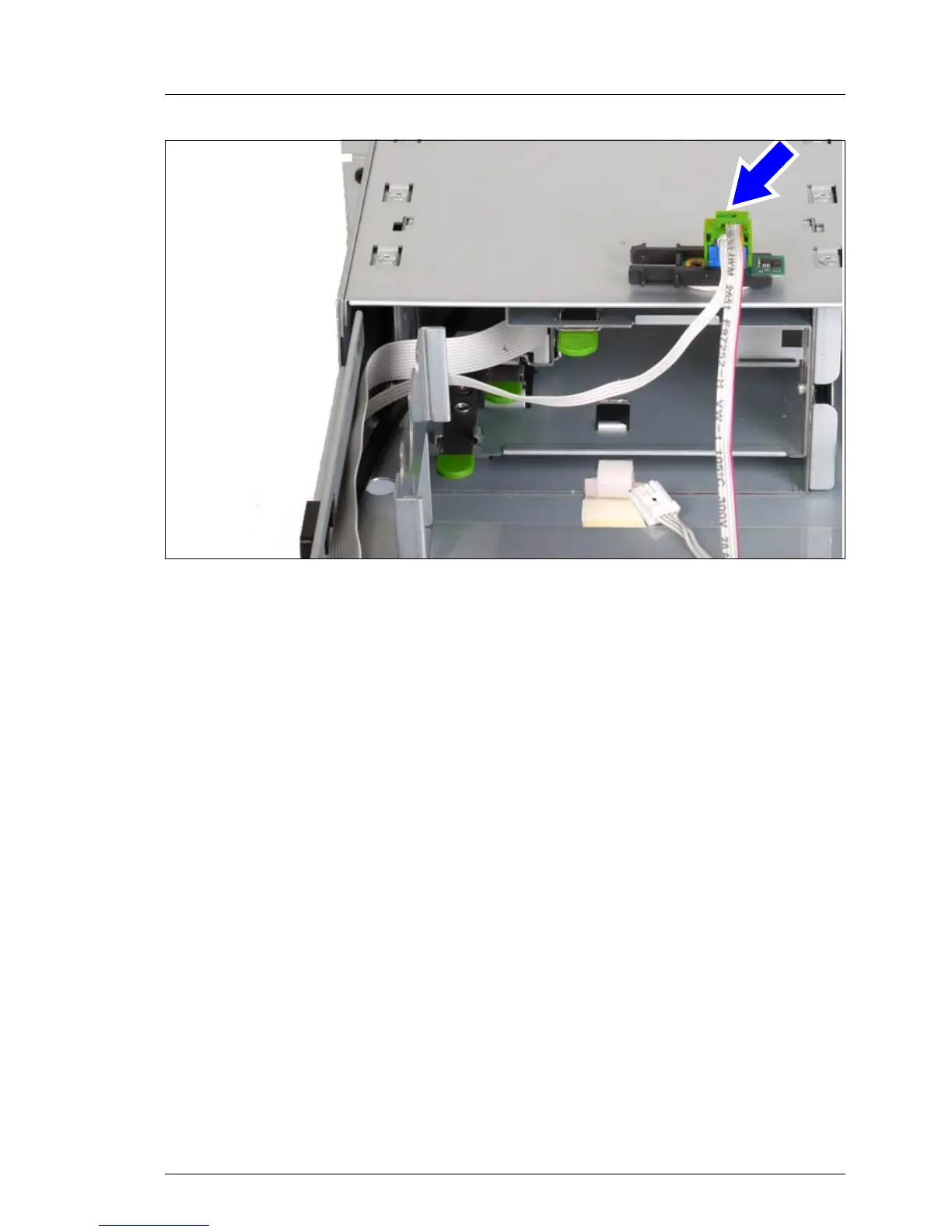

Figure 32: Inserting the IDTemp Combo
Ê Insert the connector clamp.
Ê Route the cable as shown through the connector clamp.
Ê Reinstall the IDTemp Combo with the holder.
Information about the cabling you will find in the “appendix“ of the Options Guide
PRIMERGY RX300 S5.
I After installing the new chassis ID board, it is necessary to program the
Chassis ID prom with the help of the "Chassis ID Prom Tool" to enable
ServerView and ServerStart to identify the system. The tool can be
downloaded from the Fujitsu Technology Solutions Service and Support
page (URL:
http://partners.ts.fujitsu.com/com/service/intelservers/tools).
