14 ServerView BX900 Management Blade
After these parameters have been set, the blade server system is started.
When using the serial port, firstly a number of messages concerning the system appears on the screen.
After approximately five seconds a welcome screen is displayed.
The user is requested to enter a user name and eventually a password, to be admitted to the console main menu.
The default user name and the default password are both ’admin’.

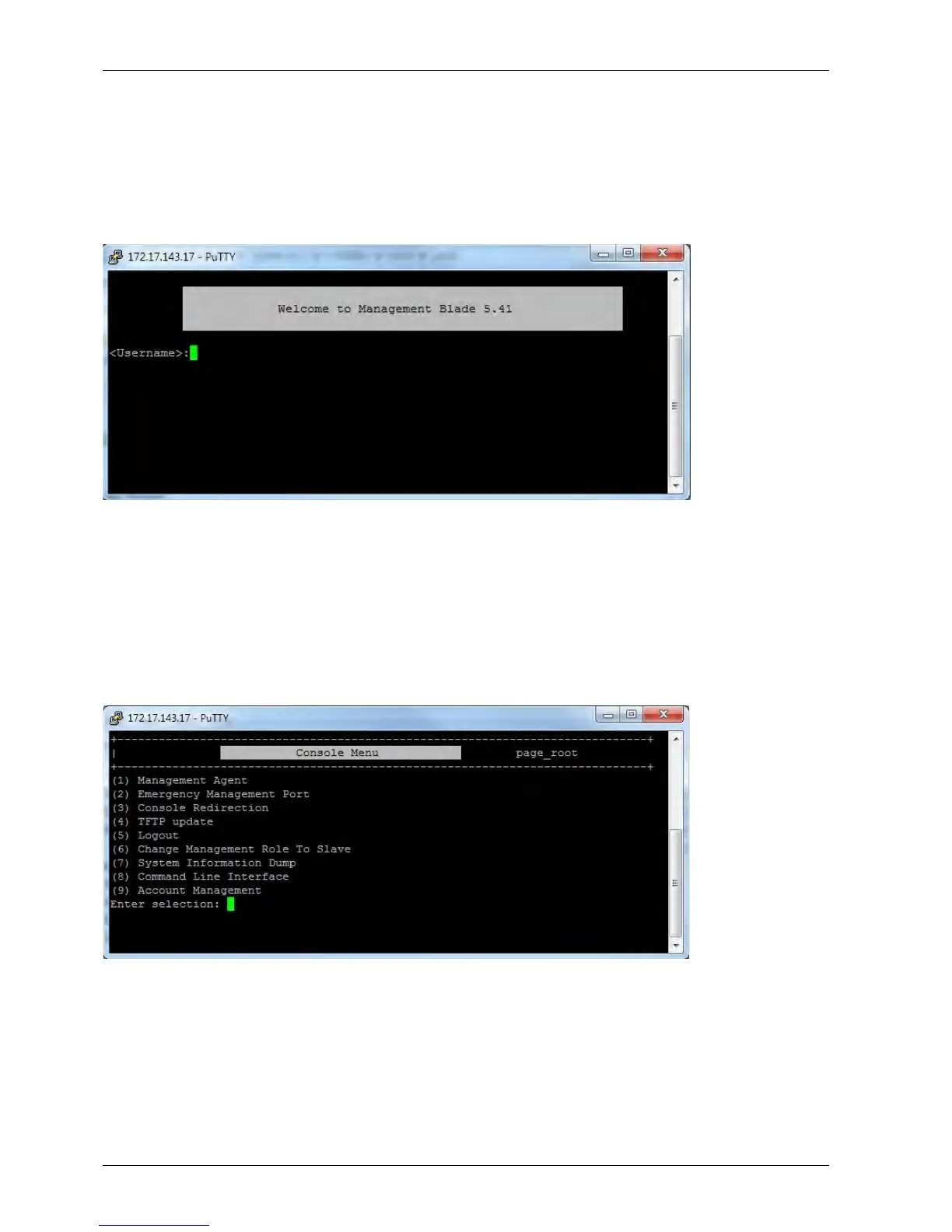

Figure 2: Welcome screen for access to the console menu
3.2 Console main menu
I New features and functions are no longer upgraded and maintained in the Console menu interface described
starting here, but only in the Command Line Interface (also known as "SM-CLP" or "SMASH CLP Shell", see
3.10 on page 40) and via SNMP interface.
The console main menu looks like this:
Figure 3: Console main menu
There are nine items in the console main menu:
1. Management Agent (see 3.3 on page 15)
This item provides several options for the management of the whole blade server system, including
management blades and connection blades.
