Fujitsu PRIMERGY TX200 S5

28 Options Guide TX200 S5
System fans Preparation
4.3.2 Removing system fan 1 (or 1&3)
Ê Remove system fan 2 (or 2&4) (see page 27).

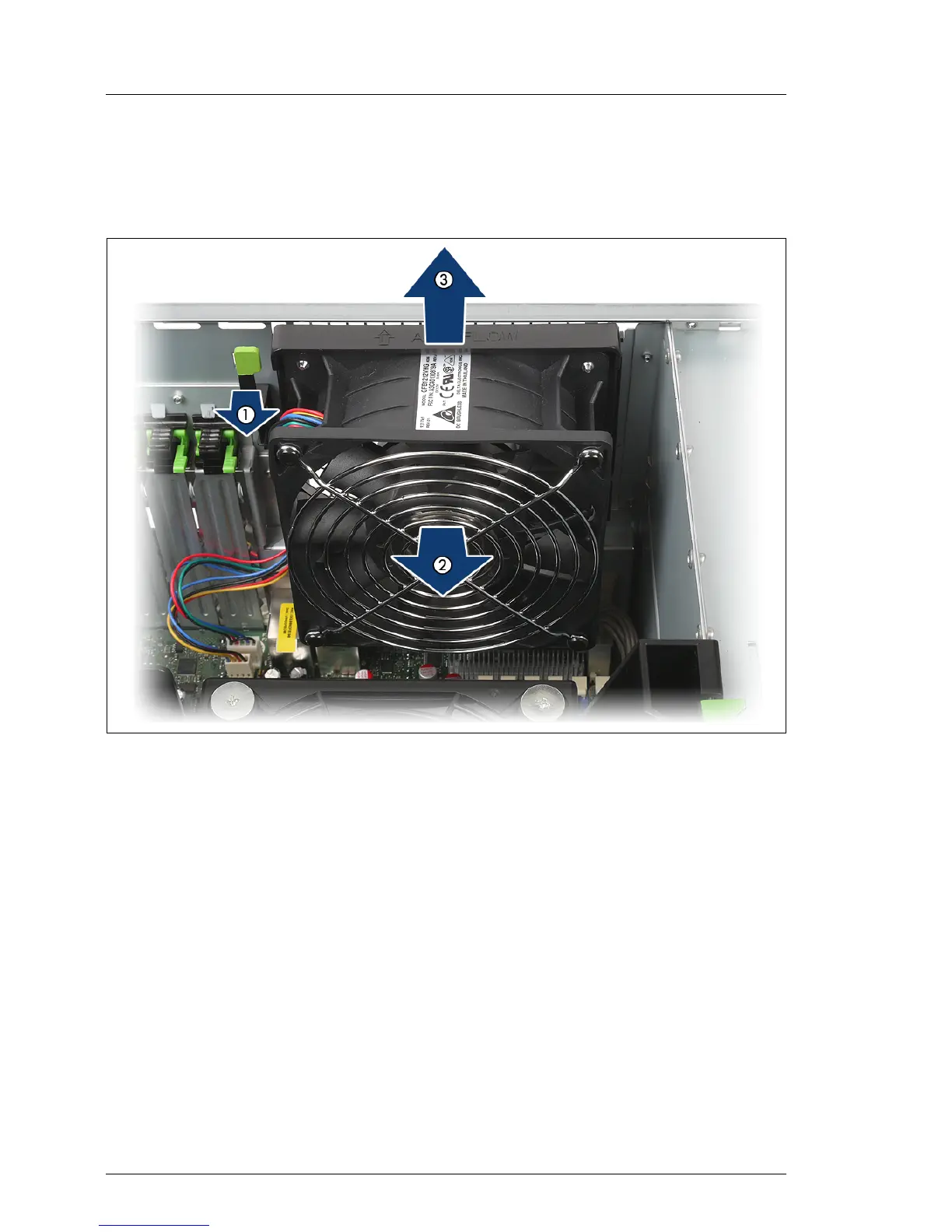

Figure 10: Example: Removing system fan 1&3
Ê Disconnect the fan cable from the connector FAN1 (if there is a second fan
cable, disconnect this from FAN3) on the system board.
Ê Push the locking lever in the direction of the arrow (1).
Ê Pull system fan 1 (or 1&3) in the direction of the arrow (2) to disengage the
four hooks.
Ê Take system fan 1 (or 1&3) out (3).
