Installing an accessible 5.25-inch drive Accessible drives
7.1 Installing an accessible 5.25-inch drive
Magnetic tape drives and DVD drives are available as accessible 5.25-inch
drives. These drives can be installed in the free 5.25-inch bays.
Ê Open the server as described in the chapter “Preparation”.
Ê Remove the front cover or rack front cover as described in the section
“Removing the front cover” or in the section “Removing the rack front cover”.
I New 5.25-inch drives are supplied without EasyClick rails. Before
installing a new 5.25-inch drive you must therefore remove the EasyClick
rails from the dummy cover and mount the EasyClick rails on the new
5.25-inch drive.
I If you install a magnetic tape drive with double height (3.2-inch), two
dummy covers of the free 5.25-inch bays must be removed.

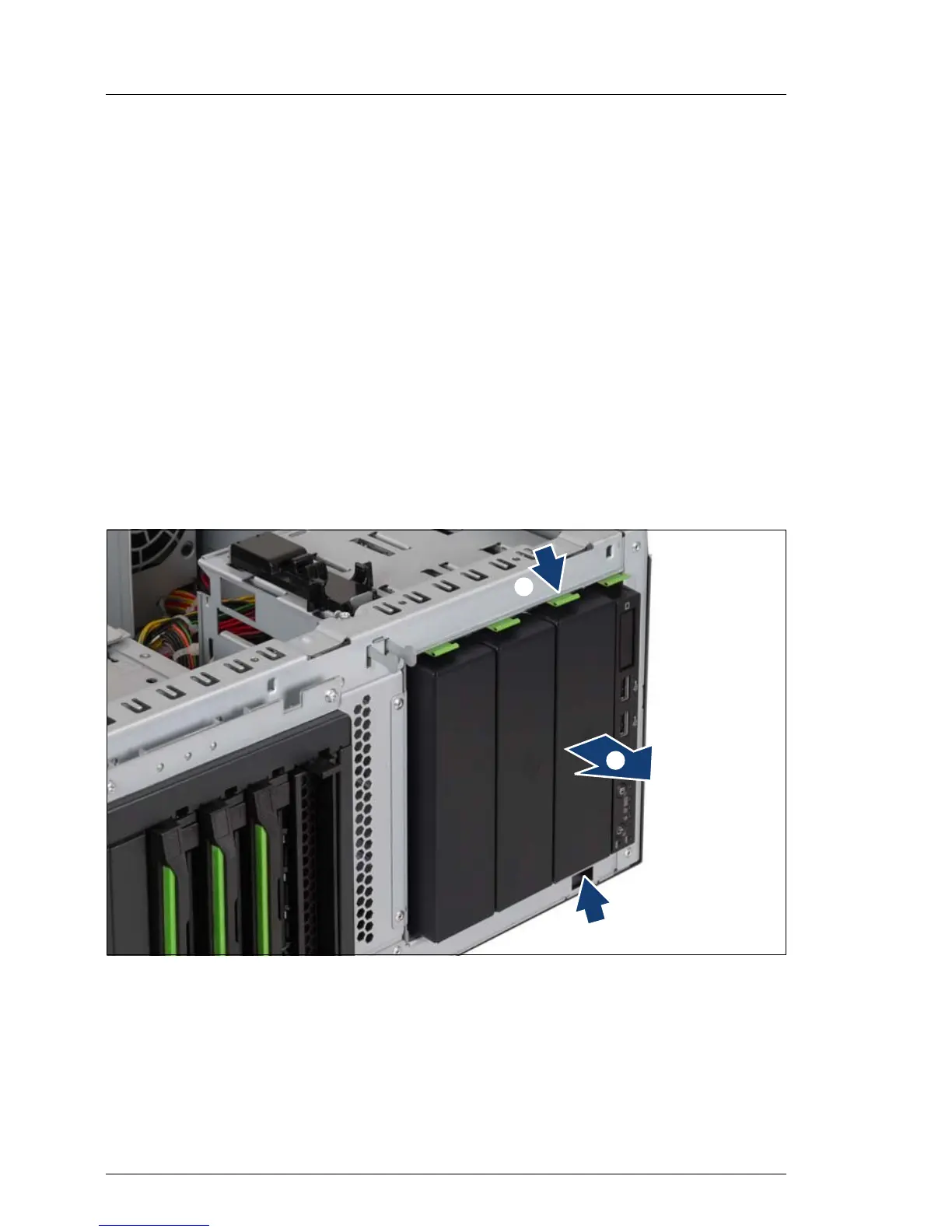

Figure 25: Removing the dummy cover
Ê Press the metal tongues on the sides of the EasyClick rails inward (1) until
the locking mechanism disengages.
Ê Pull the dummy cover out of the bay frontward (2).
Ԙ
ԙ
Ԙ
