TX200 S5 Options Guide 47
Accessible drives Installing an accessible 5.25-inch drive

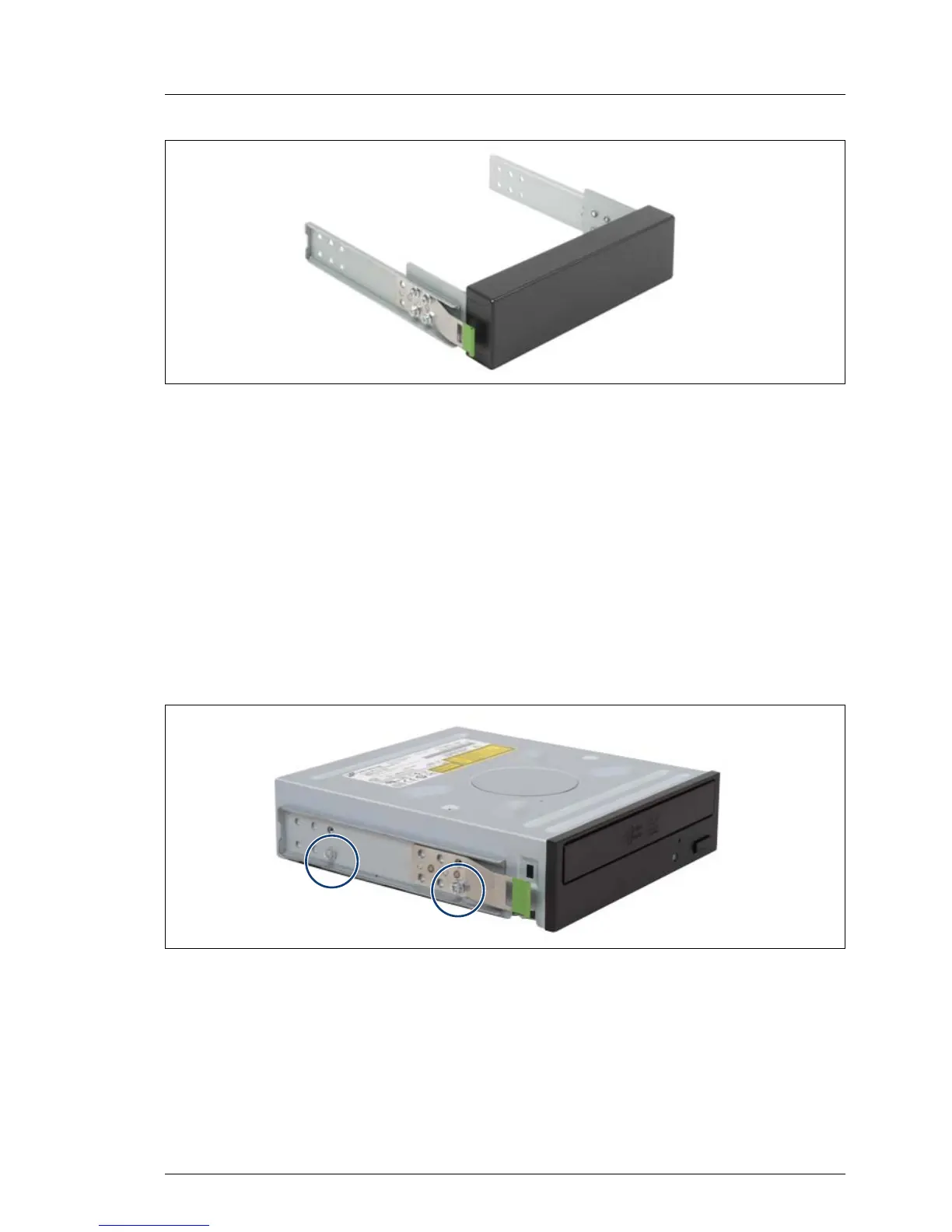

Figure 26: Removing EasyClick rails
Ê Detach the EasyClick rails from the dummy cover by removing the four
screws on each side.
I Note that on each side there are two M3x4.5mm screws with an M3
thread and two 6-32x 4.8mm screws with a UNC thread.
V CAUTION!
Keep the dummy cover for future use. If you remove the accessible
drive again and do not replace it with a new one, the dummy cover
must be reinstalled to comply with EMC regulations and to satisfy
cooling requirements and fire protection measures.
Figure 27: Attaching EasyClick rails - DVD example
Ê Screw the EasyClick rails onto either side using two M3x4.5mm screws.
I Keep the remaining screws for future use. The different drives are
fastened using different screws.
