TX200 S5 Options Guide 93
12 Completion
V CAUTION!
Follow the safety instructions in the chapter “Safety instructions”.
12.1 System fans
12.1.1 Installing system fan 1 (or 1&3)
The standard system fan 1 is shorter and has just one fan cable; the redundant
system fan 1&3 (dual fan, two fans are integrated internally) is taller and has two
fan cables. The procedure for installing both system fans is identical except for
connecting the fan cables.

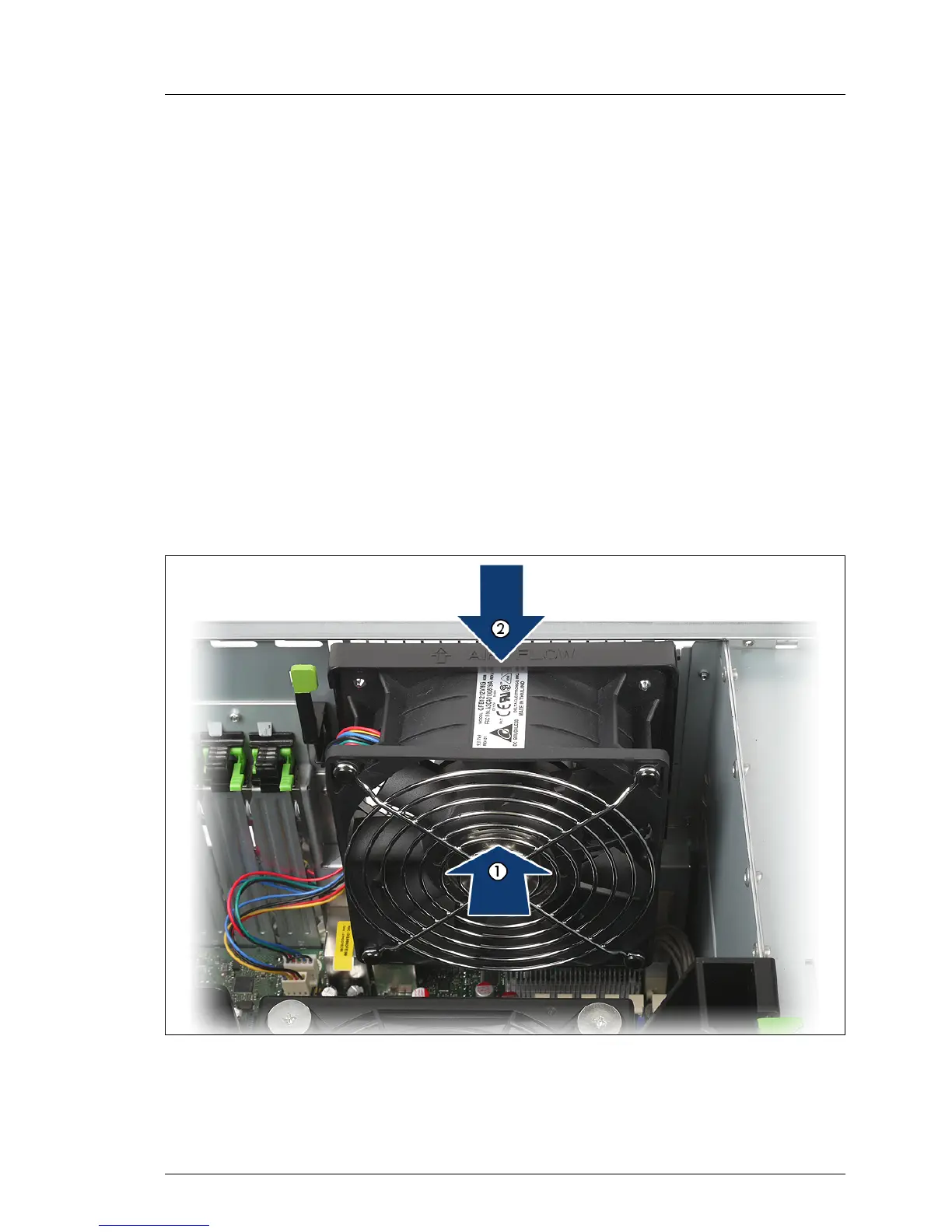

Figure 84: Example: Installing system fan 1&3
Ê Put the hooks of system fan 1 (or 1&3) into the recesses on the server’s rear
side (1).
