Further options Second serial port
9.3 Second serial port
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter “Preparation”.

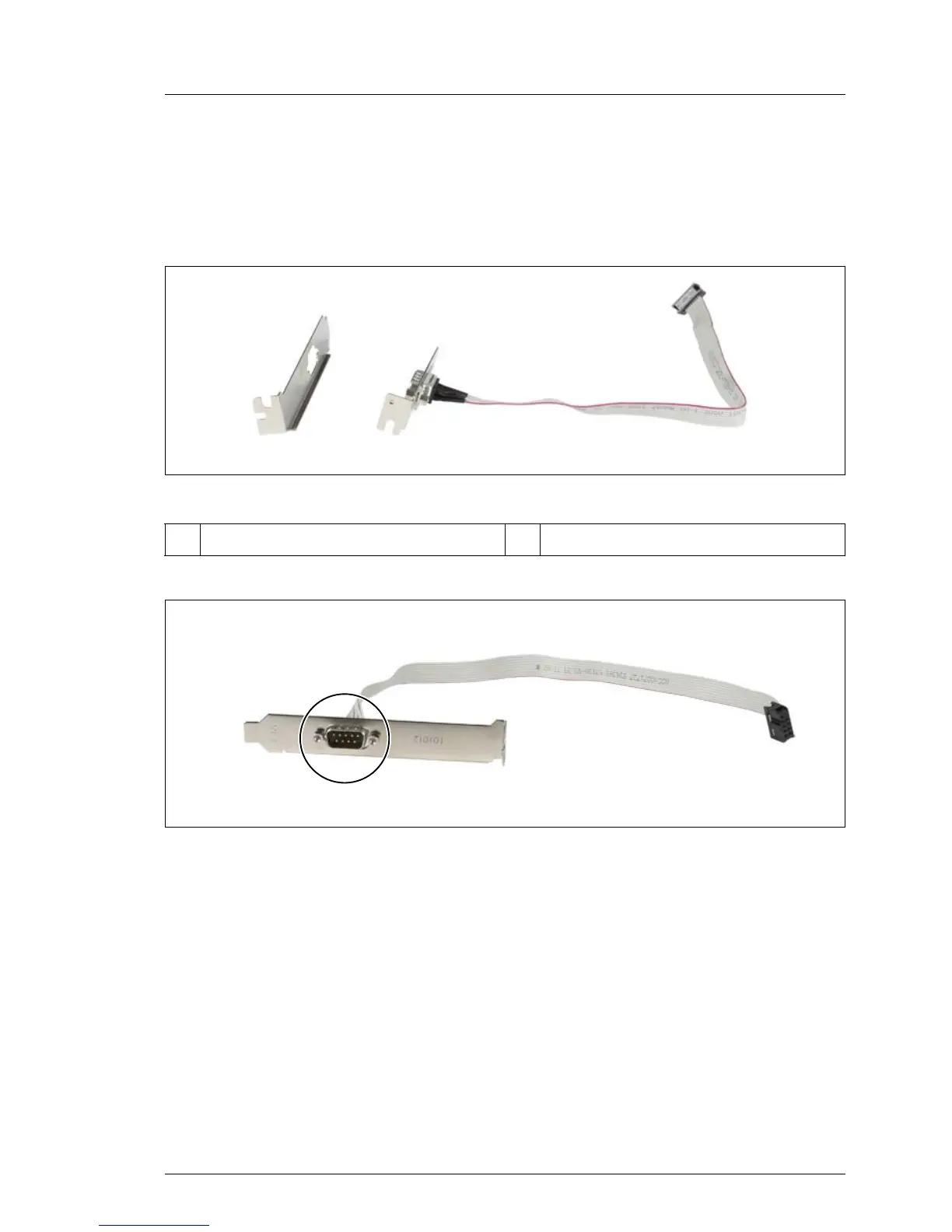

Figure 66: Serial port installation kit
Figure 67: Replacing the cover
Ê Remove the two screws on the short slot cover.
Ê Insert the serial port in the long slot cover.
Ê Fasten the long slot cover with the two screws.
1 Long slot cover 2 Serial port with short slot cover
Ԙ
ԙ
