78 Options Guide TX200 S5
Second serial port Further options

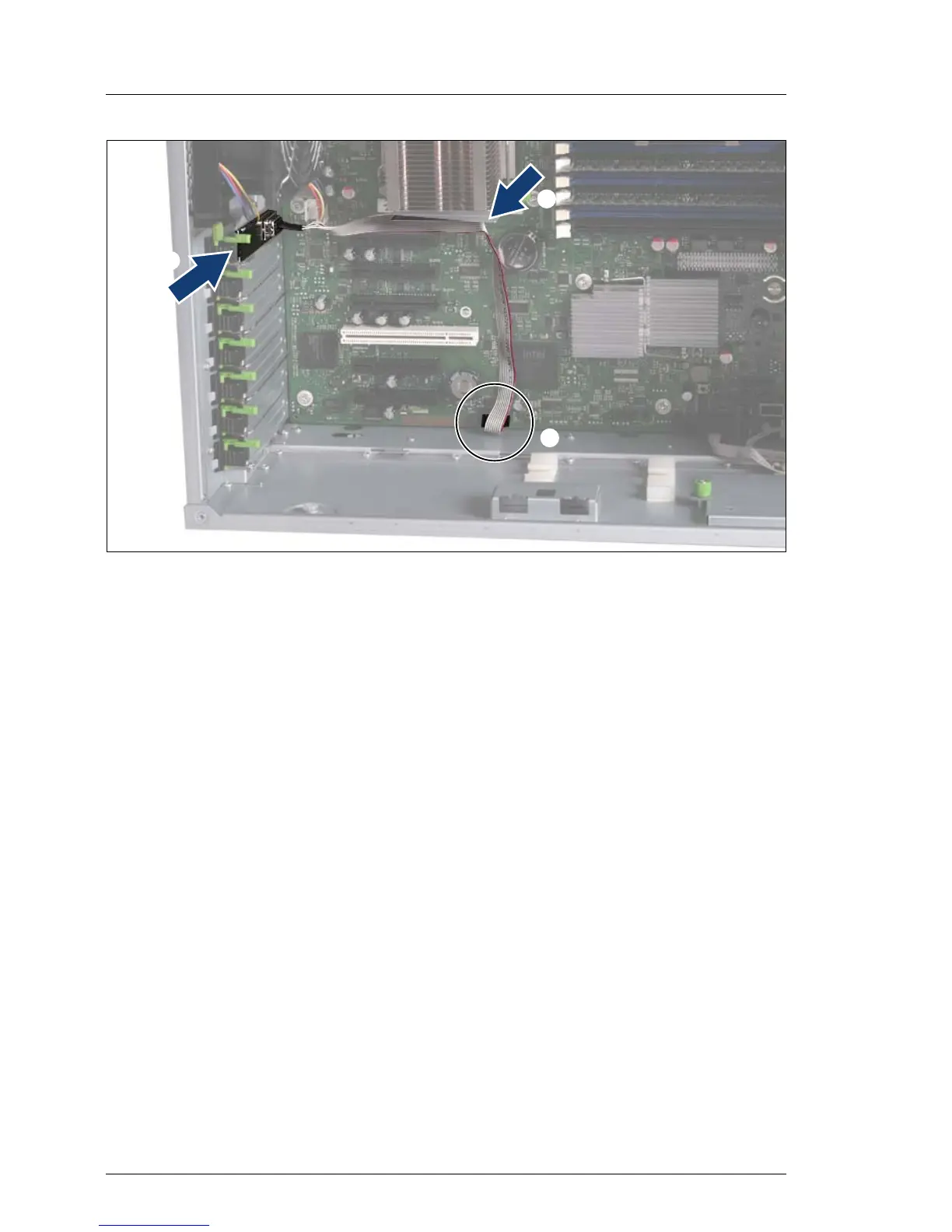

Figure 68: Installing the serial port
Ê Insert the long slot cover with the serial port in slot 7 (1) as described in the
section “Installing expansion cards” on page 65.
Ê Route the cable in the bracket on the right (2) as shown in the photo.
Ê Connect the free end of the cable to the COM2 port on the system board (3).
Ê Reinstall system fan 2 (or 2&4) as described in the chapter “Completion”.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion”.
Ԙ
ԙ
Ԛ
