98 Options Guide TX200 S5
Rack model Completion
12.3.2 Closing the server
Ê Pull the locking lever as far as it will go and insert the top cover in the five
recesses on the housing (see also figure 87 on page 96).
Ê Push the top cover against the housing and push down the locking lever at
the same time.
Closing the locking lever pushes the top cover forwards and the hooks on the
right edge of the top cover engage.
If you have not removed the server from the rack cabinet, please skip steps 1-3.
V CAUTION!
At least two people are required to install the server in the rack cabinet.
Do not use the handles on the rack front cover to lift the server into the
rack.

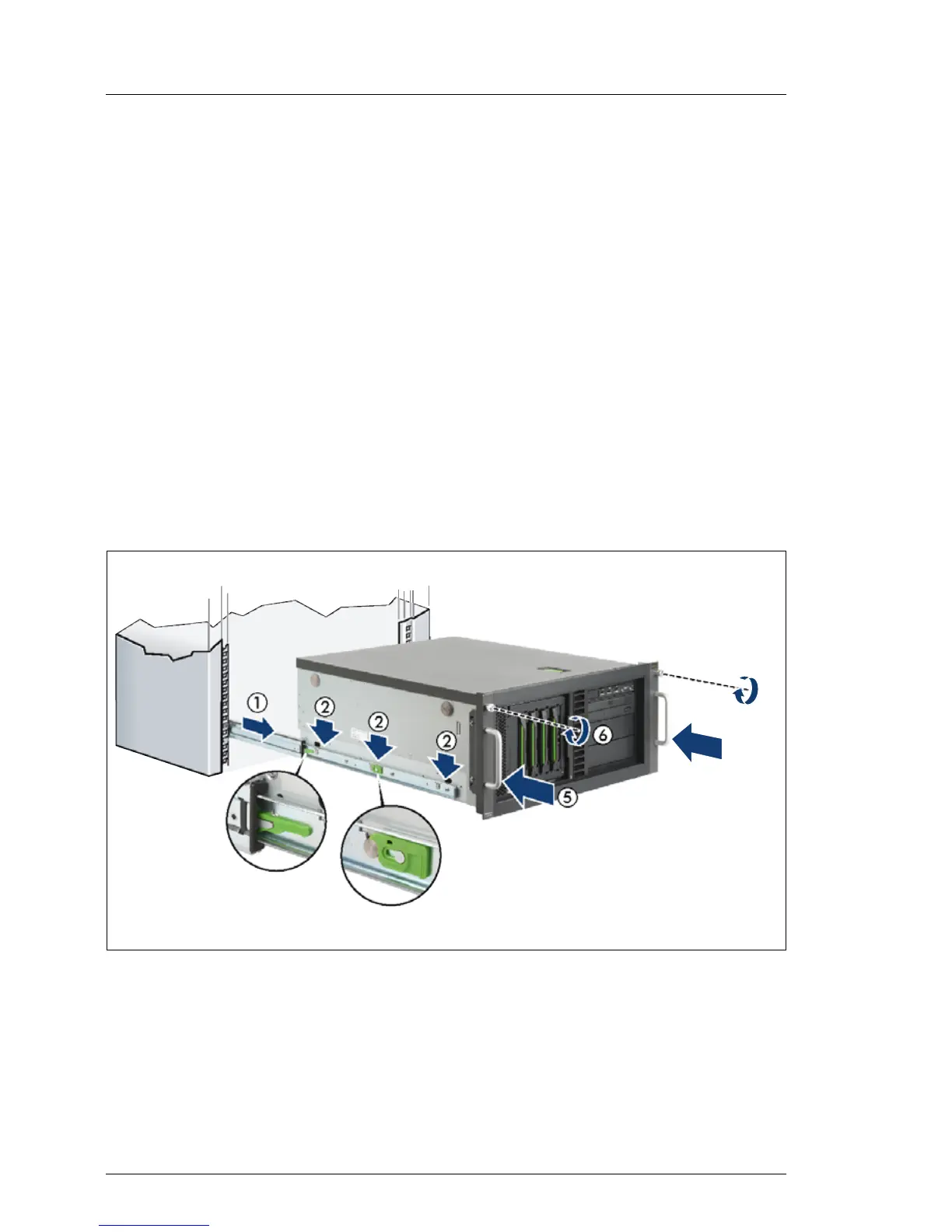

Figure 89: Installing the server in a rack cabinet
Ê Extend the telescopic rails completely to the front (1).
I They must click into place so that they can no longer be moved.
