Fujitsu PRIMERGY TX200 S5

TX200 S5 Options Guide 51
Accessible drives Installing the multibay

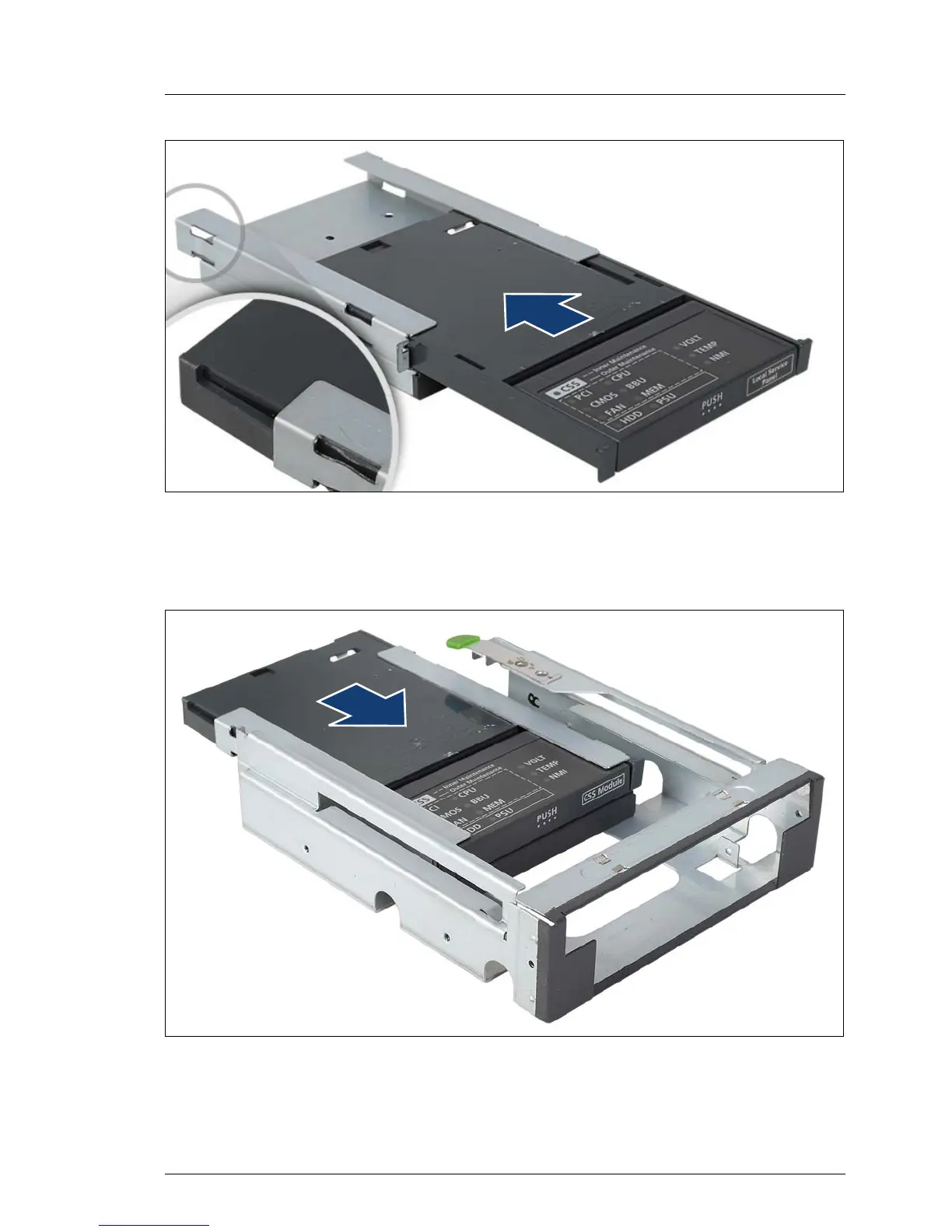

Figure 31: Sliding the LSP in the 3.5-inch frame
Ê Slide the LSP/LSD in the 3.5-inch frame from the front until it engages (see
the snap-in hook in the circle).
Figure 32: Sliding the 3.5-inch frame with the LSP in the multibay
Ê Slide the 3.5-inch frame with the LSP/LSD in the multibay from the rear.
