Fujitsu PRIMERGY TX200 S5

60 Options Guide TX200 S5
Installing the hard disks extension box Accessible drives

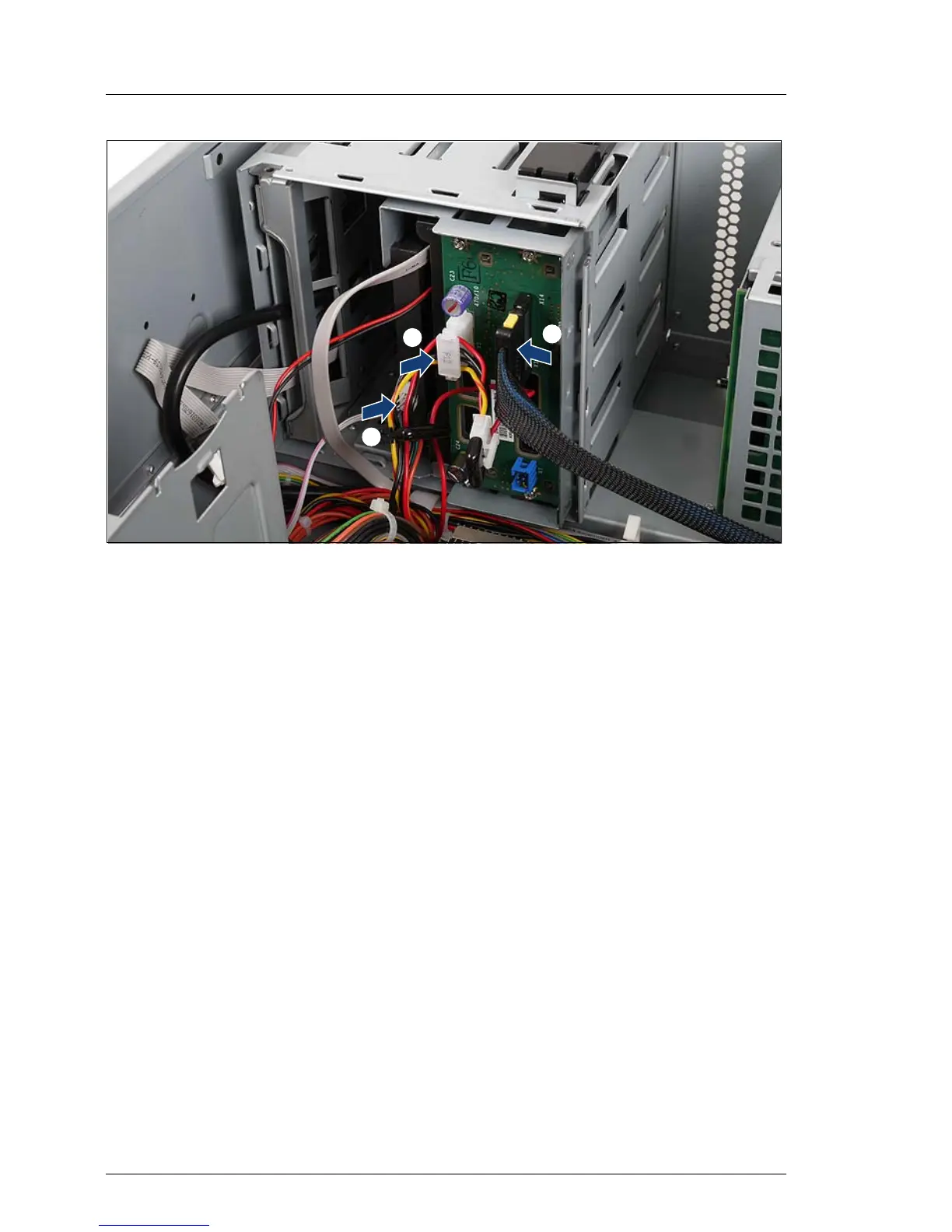

Figure 44: Example: Connecting the cables
Ê Connect the small plug of the front panel cable (1) to the LSP/LSD (see the
cabling plans in the Appendix).
Ê Connect the power cable (2) plug P12 to the
3.5-inch HDD extension box (see the cabling plans in the Appendix).
Ê Connect a SAS/SATA cable (3) to the 3.5-inch HDD extension box and the
SAS/SATA RAID controller (see the cabling plans in the Appendix).
Ԙ
ԙ
Ԛ
