66 Options Guide TX200 S5
Installing expansion cards Expansion cards and BBU
Ê Open the server and remove system fan 2 (or 2&4) as described in the
chapter “Preparation”.

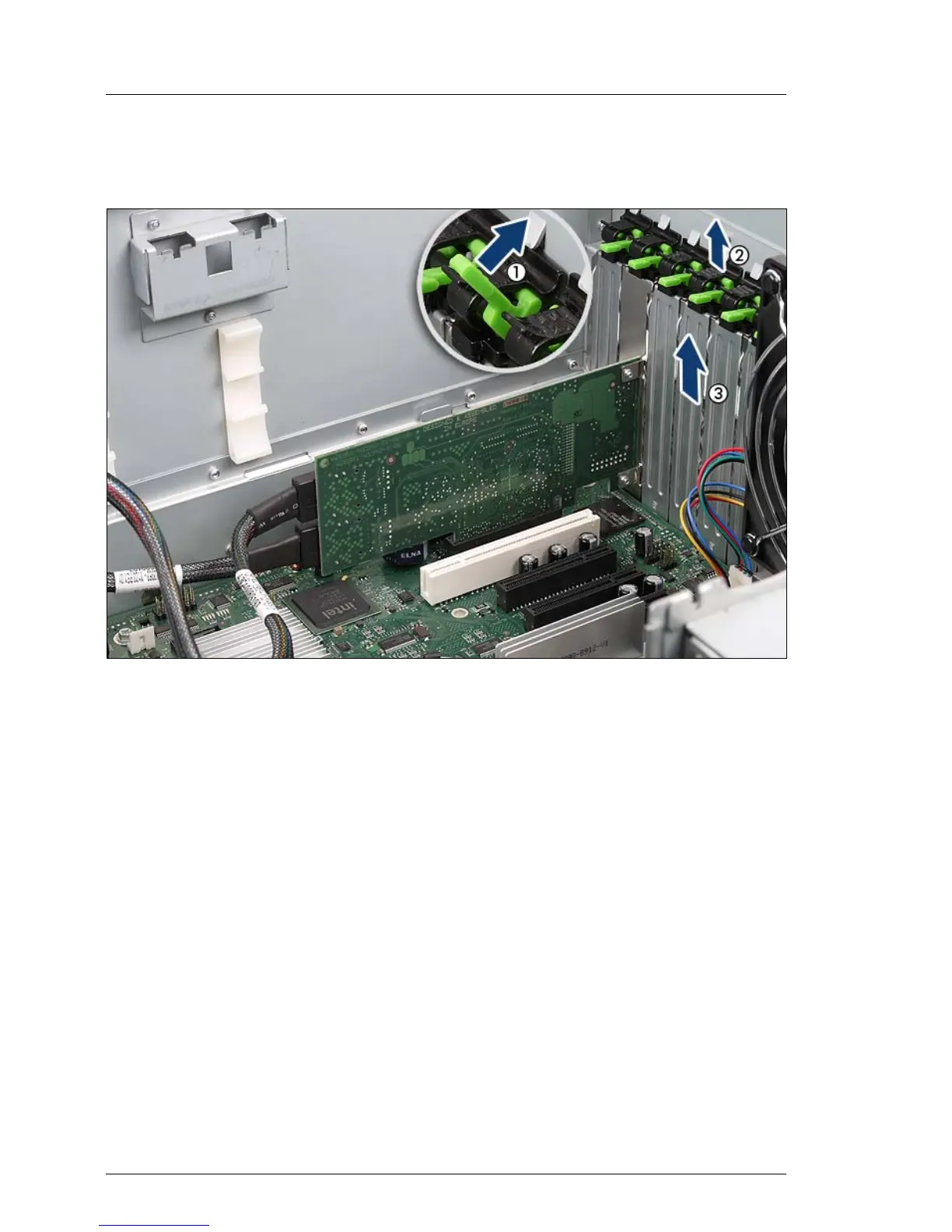

Figure 51: Removing the slot cover
Ê Open the slot locking bar (1).
Ê Remove the slot locking bar (2).
Ê Remove the PCI slot cover (3).
V CAUTION!
Keep the slot cover for further use. If the expansion card is removed
again and not replaced with a new one, the slot cover has to be
reinstalled to comply with applicable EMC regulations and satisfy
cooling requirements and fire protection measures.
Ê Unpack the new expansion card, and make the desired settings. You should
read the accompanying documentation supplied with the expansion card
beforehand.
