TX200 S5 Options Guide 85
Conversion to hot-plug PS and redundant system fans

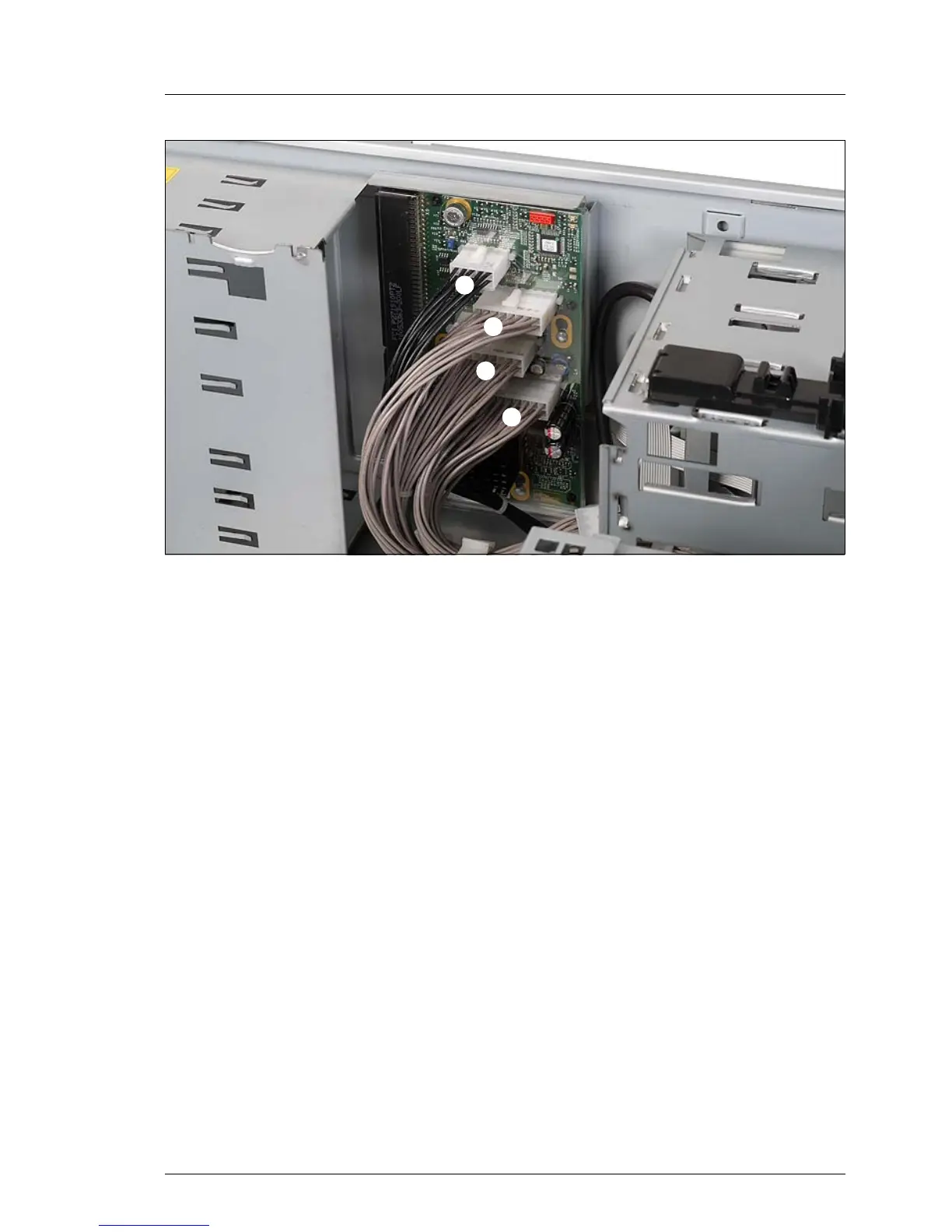

Figure 77: Power backplane - Connecting the cables
Ê Connect the PS cable T26139-Y3997-V1/A3C40101525 to the connector
X3 (1) on the Power backplane.
Ê Connect the PS cable T26139-Y3952-V451/A3C40101318 to the connector
X2 (2) on the Power backplane.
Ê Connect the PS cable T26139-Y3986-V401/A3C40101635 to the connector
X4 (3) on the Power backplane.
Ê Connect the PS cable T26139-Y3758-V8/A3C40057456 to the connector
X1 (4) on the Power backplane.
Ê Route the PS cable in the cable clamps in the same way as the PS cable of
the standard power supply was routed before.
Ê Connect the PS cable to the system board (see the cabling plans in the
Appendix).
Ê Connect the PS cable to the drives and the HDD backplanes (see the
cabling plans in the Appendix).
Ê Push both power supply modules in the bays of PS cage until they engage
(description see the operating manual).
Ԙ
ԙ
Ԛ
ԛ
