Fujitsu PRIMERGY TX200 S5

88 Options Guide TX200 S5
Conversion from a floorstand model to a rack model

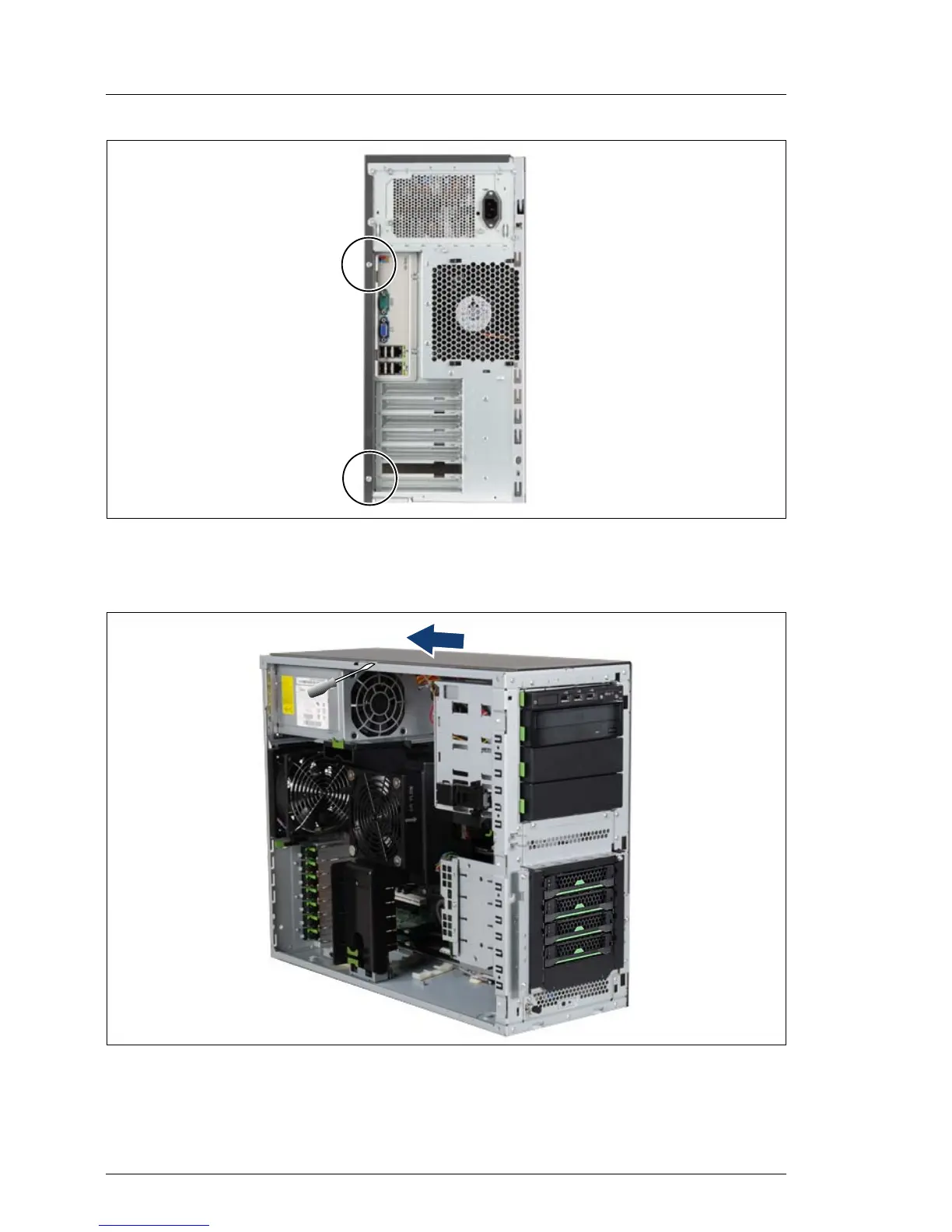

Figure 79: Removing the screws from the right-hand side cover
Ê Remove the two screws on the rear of the server.
Figure 80: Removing the right-hand side cover
Ê Lift the hook up slightly using a screwdriver.
