7.2 Replacing the Pad ASSY
ScanSnap fi-5110EOX
Operator's Guide
103
Replacing Consumables
7
4.

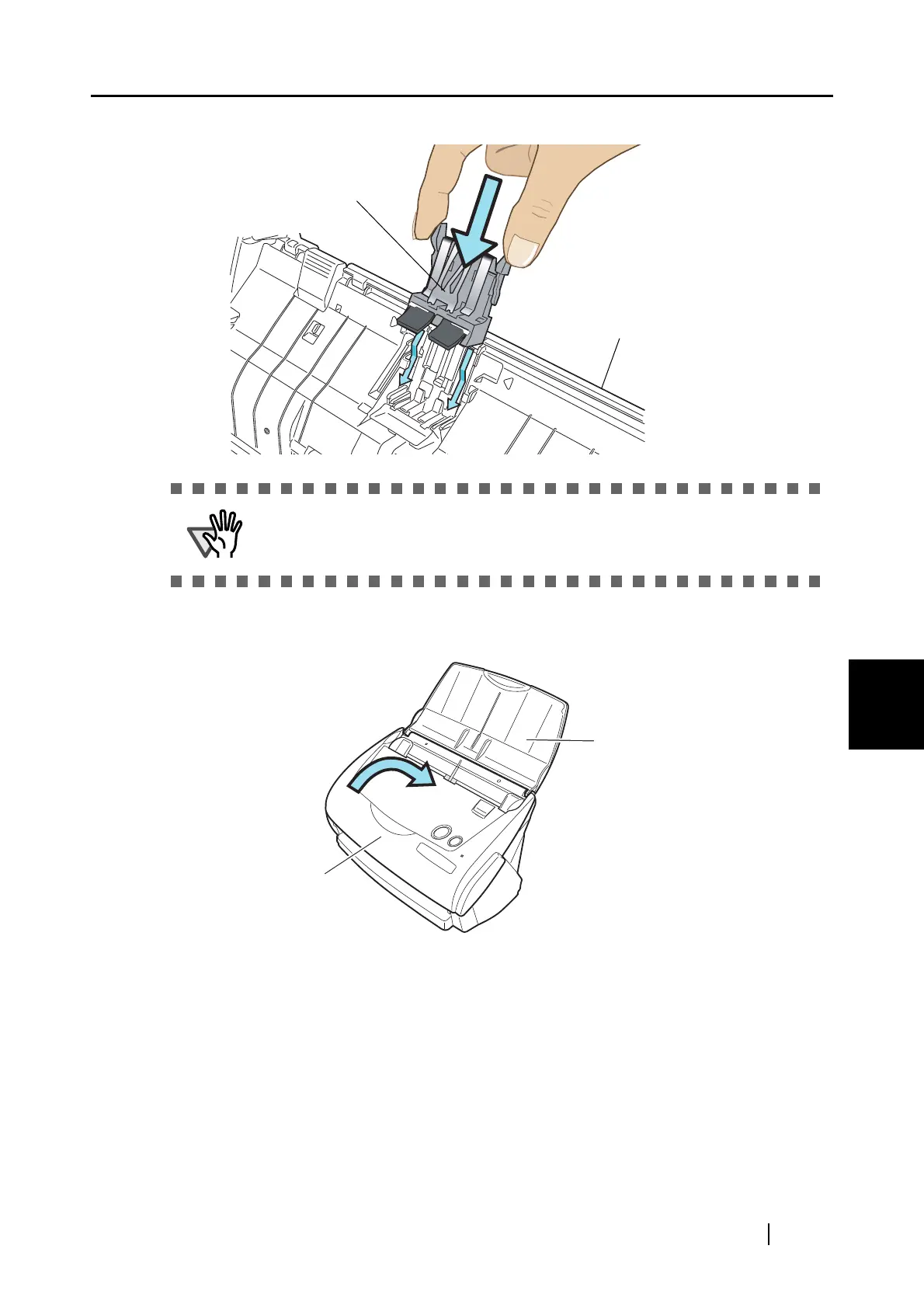

Attach the new Pad ASSY.
5.
Close the ADF.
⇒
You should hear the ADF click when
it returns to its original position.
ATTENTION
Make sure that the Pad ASSY is comple
tely attached. Ot
herwise, document
jams or other feeding er
rors may occur.
Pad ASSY
ADF cover
Paper chute cover
ADF cover
