19.PARAMETER TABLE

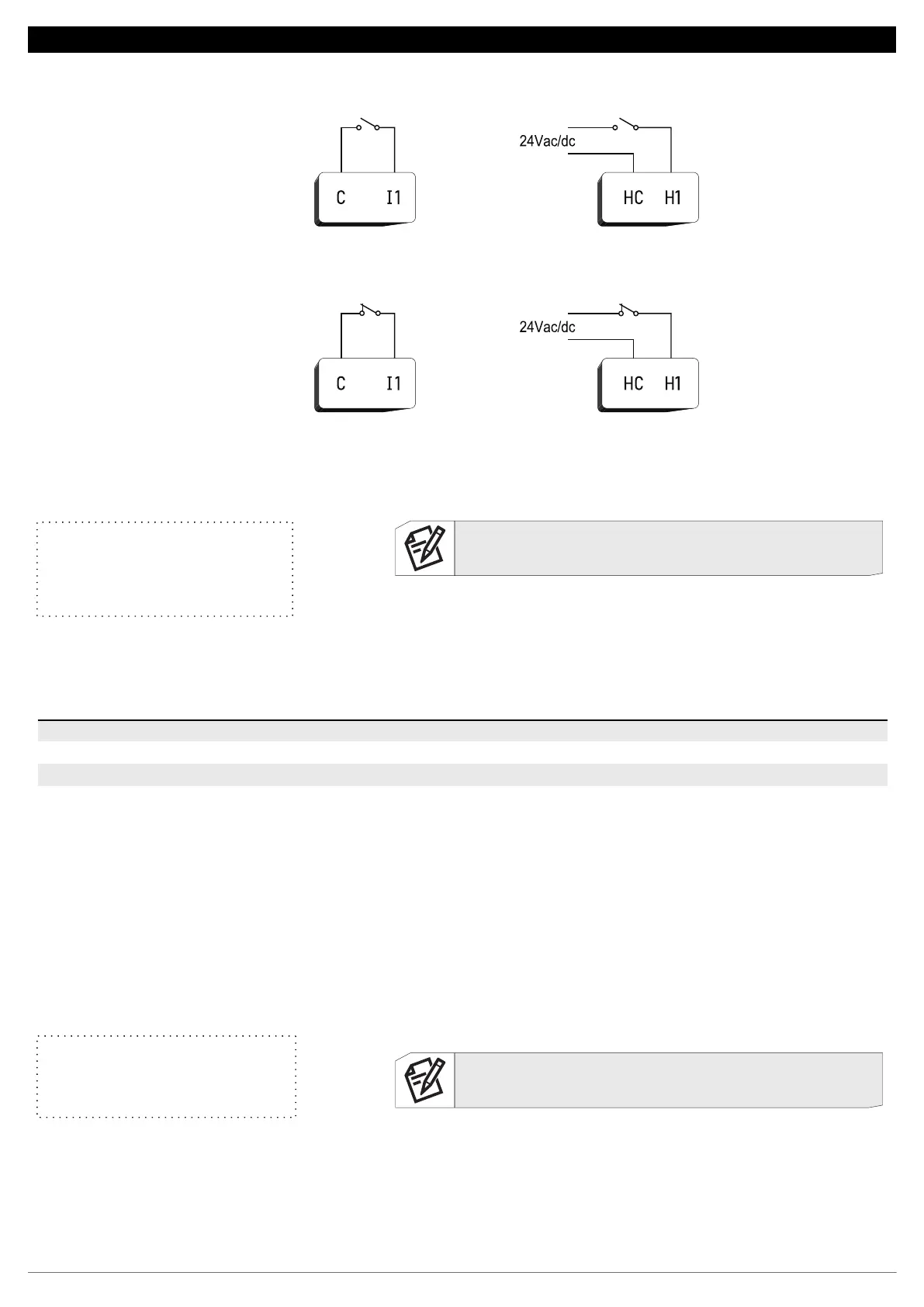

1.6.x.3 Contact type NO-NC:
Actuation status at the input. NO is actuated via a normally open contact and NC is actuatead via a normally closed contact.
1.6.x.4 Address of the digital input:
Links the address of the physical digital input with input x.
1.7 Auxiliary features:
1.7.1 Pump Down:
1.7.1.x.1 Enables Pump Down:
Enables the Pump Down shutdown function.
1.7.1.x.2 Pump Down Setpoint:
Pressure value that indicates that the refrigerant has been completely collected and the compressors are shutdown.
1.7.1.x.3 Maximum time for Pump Down:
Maximum time allowed for refrigerant collection. After this time has elapsed, compressors are shutdown.
1.7.1.x.4 Digital output:
Address digital output
Feature
Minimum
Description
1.7.1.x.1
1.7.1.x.2
1.7.1.x.3
1.7.1.x.4
Pump Down setpoint
Digital output
Enables Pump Down
Maximum time for Pump Down
850,0 (58,6)
999
-
1 [yes]
25,0 (1,7)
5
0
-14,7 (-1,0)
1
0
0 [no] 0 [no]
-
-
Psi (Bar)
min
0 = Not configured
1 = Base - HI1
2 = Base - HI2
3 = Base - HI3
4 = Base - I1
5 = Base - I2
6 = Base - I3
8 = Base - I5
7 = Base - I4
0 = Not configured
1 = Base - O1
2 = Base - O2
3 = Base - O3
4 = Base - O4
5 = Base - O5
6 = Base - O6
NO
NC
Note: The inputs present in the expansion modules will be listed in
menu 4 after their configuration.
Note: The outputs present in the expansion modules will be listed in
menu 4 after their configuration.
62
Maximum
Standard
Unit
