during installation, ensure that the antenna faces into the
passenger cell (see Fig. 02). Vertical mounting is ideal. Metallic
screening between the front panel and the passenger cell, such
as metal or metallised plastic panels, are unsuitable and may
interfere with the Bluetooth
®
connection. Locations behind
the dashboard or in a metal-lined glove compartment are also
unsuitable.
A covering in plastic, fabric or wood presents no problems
whatsoever.
Suitable locations for the electronics box:
Passenger side, next to the middle console under the paneling,
model-specifi c installation console (dealer).
Our suggested installation locations are shown in the illustration on the right.
Further unsuitable locations are:
Leg and knee height, potential head impact zone, airbag infl ation space, engine compartment
6.2.3 Selection of site for installing the microphone
Suitable for the microphone:
Where voice can reach the microphone unhindered (distance
between the speaker and the microphone should be approx.
13.78 in), on the A-column (between windshield and driver’s side
window), next to the driver‘s sun visor, on the dashboard
Unsuitable for the microphone:
Close to the speakers (less than 31 in), under the dashboard, in
the air stream from open windows or air vents.

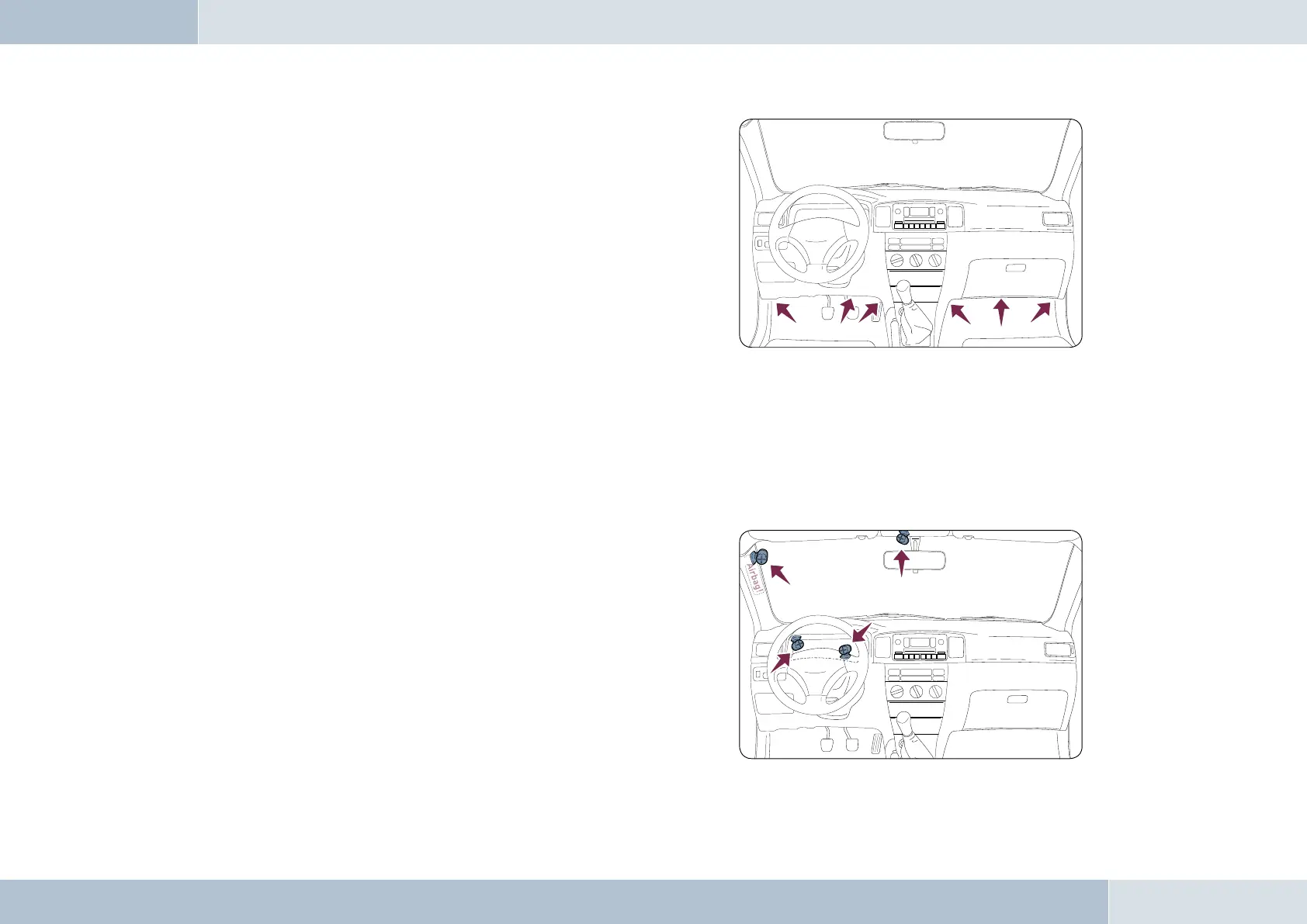

Fig. 03:
Installation
location of the
electronics box
Fig. 04:
Installation location
of the microphone
The illustration
shows one of the
potential microphone
mounting locations.
Alternatively, the
microphone may be
attached to the sun
visor with the clip
provided.
