Furuno FMD3100 - MC-3020;3030 D Connections

2. WIRING
2-20
2.2.5 MC-3020/3030D connections
• MC-3020D: Inputs digital signal (8ch contact input). Contact or voltage input is se-
lectable (contact input requires jumper pins).
• MC-3030D: Outputs digital signal (8ch, normal open/close).

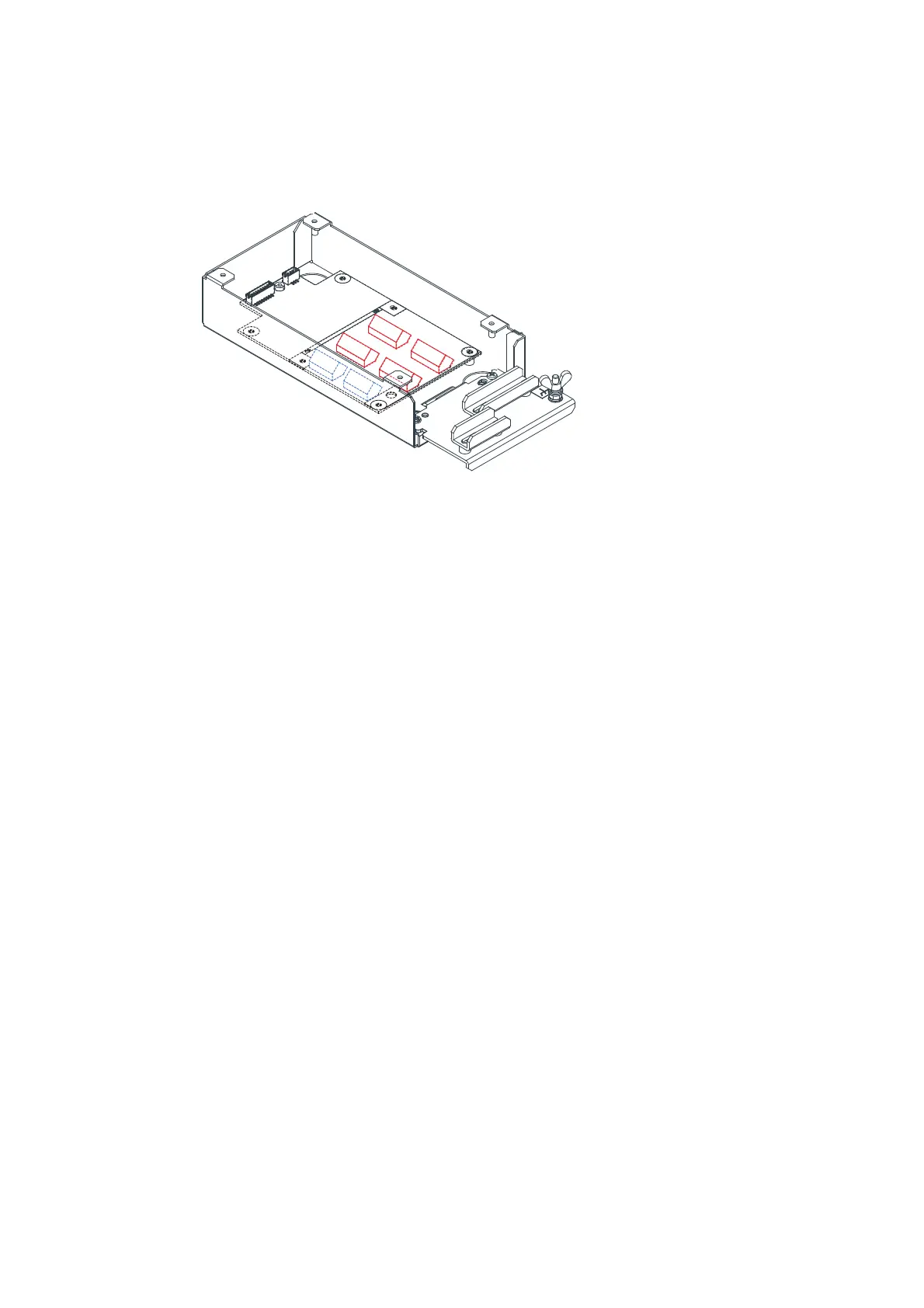

MC-3020D/3030D
J1
J1
J2
J2
J4
J4
J5
J5
J3
J3
MC1.5-W-L cable
MC1.5-W-L cable
MPYC-12
MPYC-12
IV-1.25sq. (Local supply)
IV-1.25sq. (Local supply)
J6
J6
Note: Fasten the cable shield with the cable clamp.
