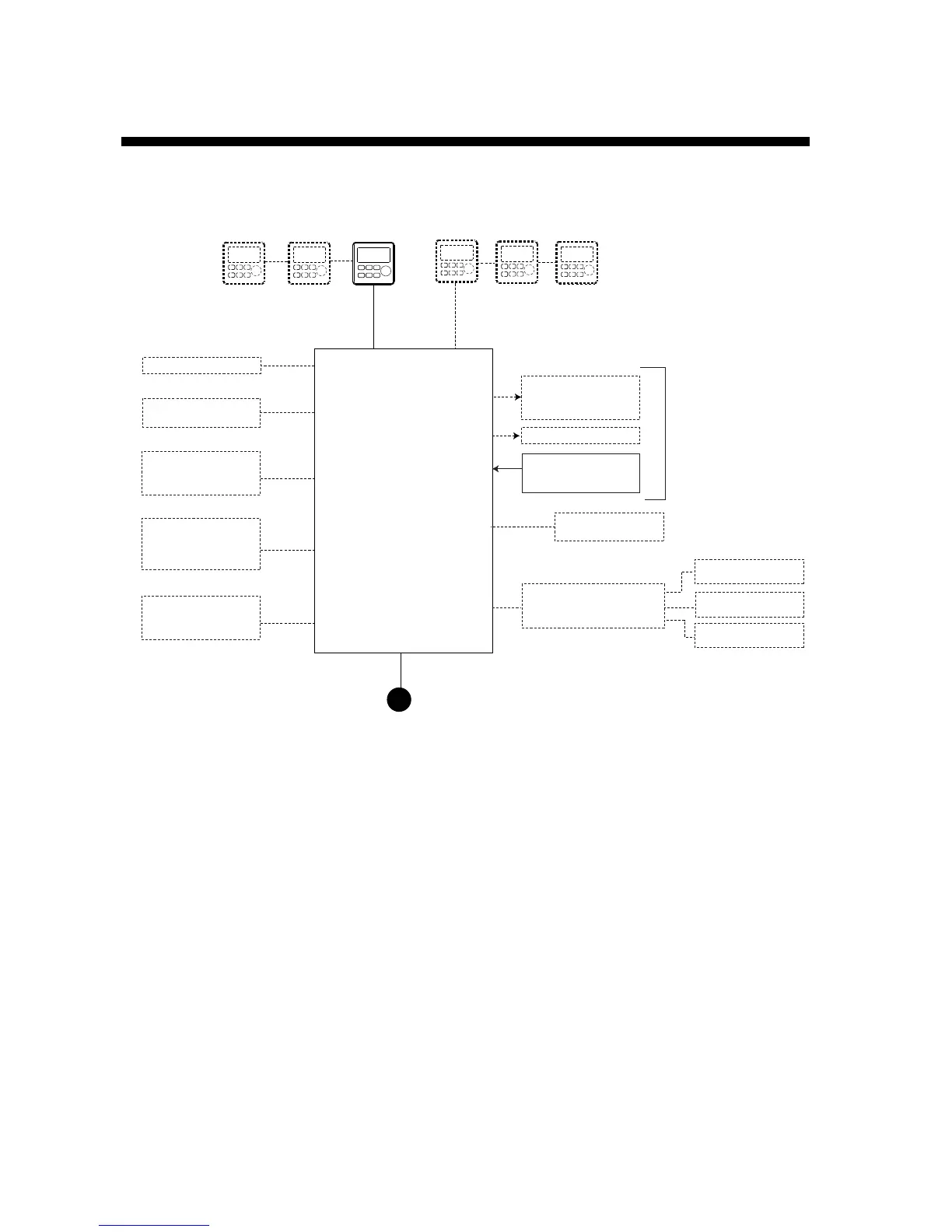

SYSTEM CONFIGURATION
Standard configuration is shown with solid line.
12-24 VDC
Processor Unit
FAP-5002
Control Unit
FAP-6011 (Max. 6)*
Heading sensor
PG-500
Rudder Reference Unit
FAP-6112
Remote Controller
Distributor FAP-6800
Remote Controller
Remote Controller
Reversible pump or
Electromagnetic valve unit
PC
External buzzer
Navigator
(NMEA0183)
RD-30 (Max. 3)
(NMEA0183)
Clutch
Remote Controller
Remote controler
Dial type: FAP-5551, FAP-5552
Button type: FAP6211, FAP-6212
Lever type: FAP-6221, 6222
Dodge type: FAP-6231, 6232
Ship's steering system
*: Any combination of FAP-5001, 5011 and 6011 is available.
Also, FAP-5021 can be connected at the end of series.
To Next Page
