Page No. 15
7.2 FITTING THE CHART

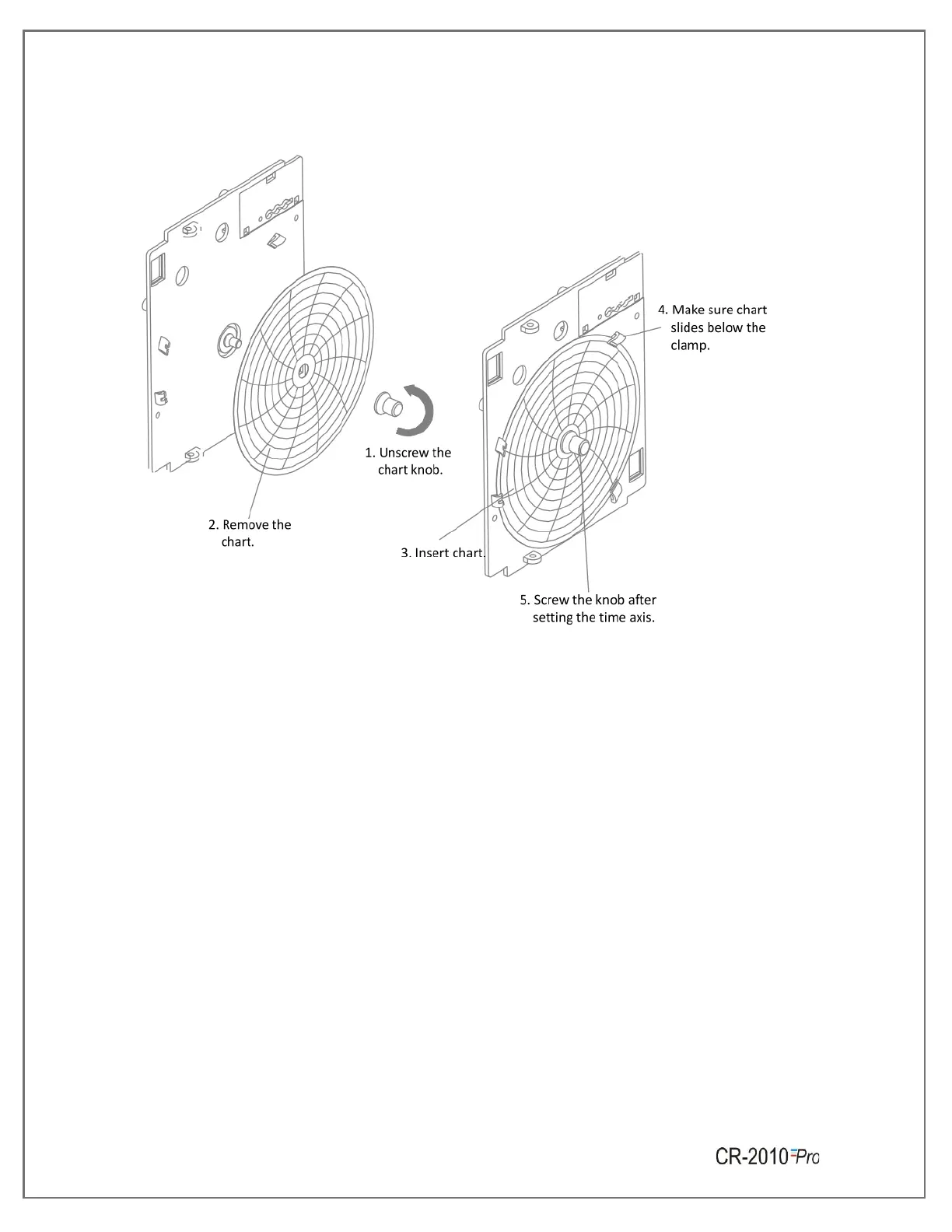

Figure 7 Chart Fitting
To replace the chart, follow the steps:
1. Open the door of the recorder.
2. Park the pen on full scale position.
3. Unscrew the chart knob as shown in figure 7.
4. Remove the chart.
5. Insert the new chart.
6. Screw the knob after setting time axis. Make sure that chart slides below the clamp as
shown in Figure 7.
