G-Tek 27 Series - Figure 10 View Current Time; Figure 11 Battery Status Indication

Page No. 19
➢ “Display shows only one status out of these four as per the connection to the device”.
➢ Currently it shows the nbt on status, it indicates that the display is currently connected
to the mains power supply.

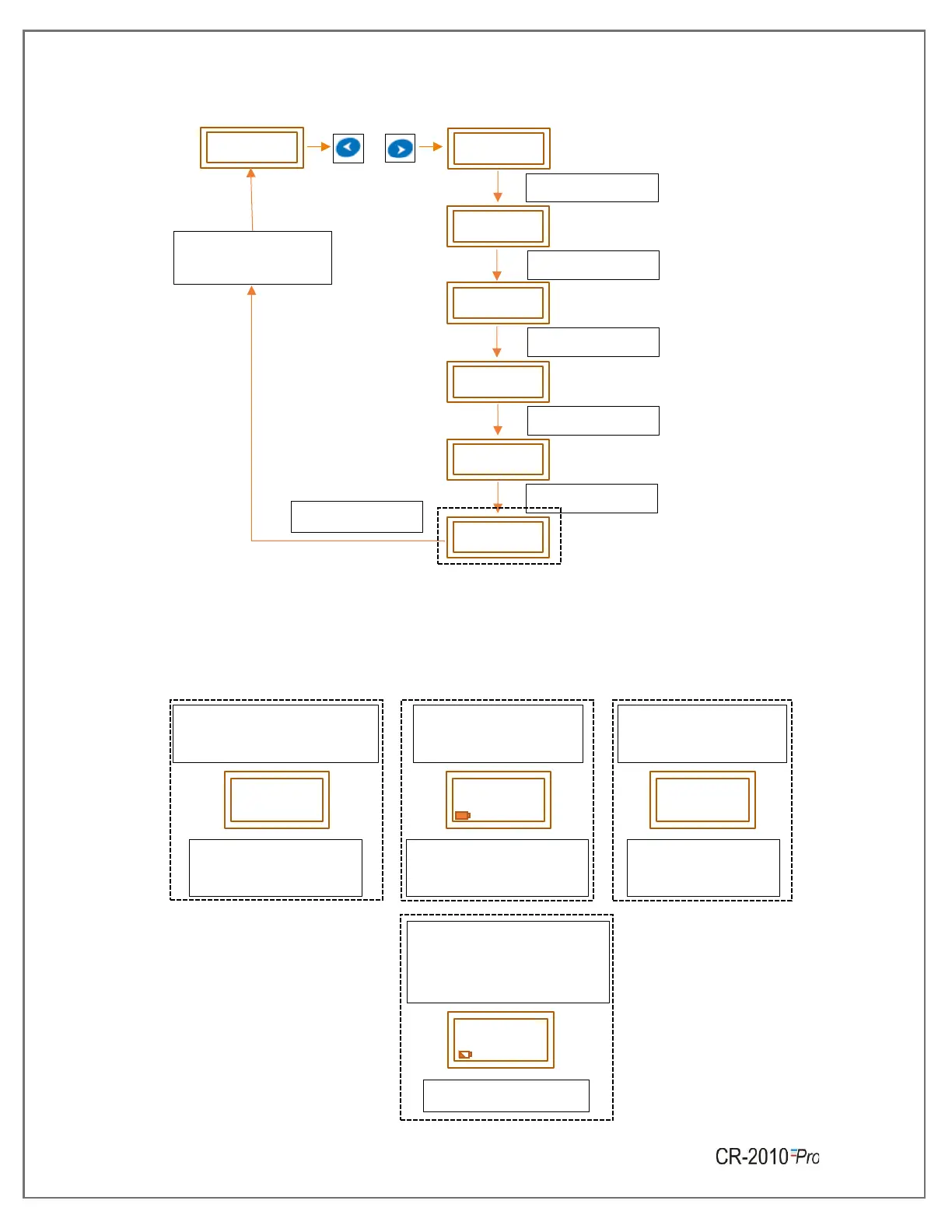

Figure 10 View current time
Figure 11 battery status indication
Display in normal
condition is off.
D17
Display for 3sec.
M10
Y19
Display for 3sec.
Display for 3sec.
M17
Display for 3sec.
H12
Display for 3sec.
nbt
Display for 3sec.
OR
bat
nbt
Mains and battery both
are connected to device.
Only battery is
connected to device.
Only Mains is
connected to device.
Display will be off as
normal condition.
Display shows bAt and
symbol of battery.
Display shows nbt.
Only Battery is connected
to device. And Battery
voltage < 10.5 Volts
Display shows bAL
Bal
