5.4 Installation in the door
Depending on the door material (timber, metal, PVC), dierent fastening
screws must be used for the installation of SECUREconnect ; type and
length of the screws vary according to the door profile used.
It is important, however, that the max. screw diametre does not exceed
. mm. The fastening screws should allow for being inserted through the
faceplate and SECUREconnect without any resistance.
Ensure that there is sucient space for a cable loop.
Be careful to not deform the faceplate when fastening SECUREconnect
to the door (this refers especially to flat faceplates).
In installed condition, the tappet contacts of SECUREconnect F and
the contact surfaces of SECUREconnect R must be exactly aligned, the
maximum tolerable oset is mm.

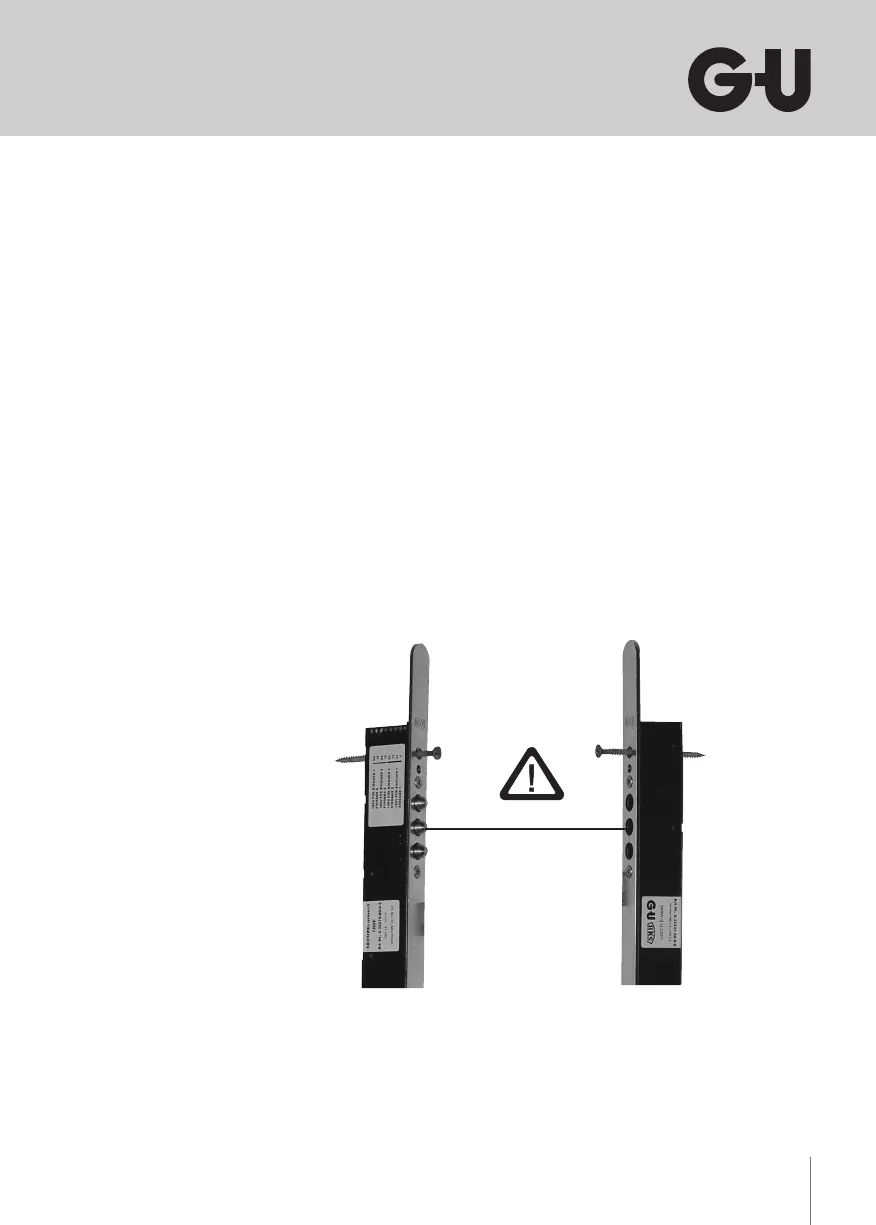

Max. offset 2mm
Figure shows installation in timber doors.
In the case of metal and PVC doors, SECUREconnect F is fastened by the
faceplate screws.
Please consider enclosed installation drawing --LO.
