G-U BKS SecureConnect 200 - Connection Diagram of EK Lock Series 21; (With 14-Wire Connecting Cable)


Power and data transmission unit
Mounting und operating instructions
SECUREconnect 200
. | EE | Printed in Germany
EN

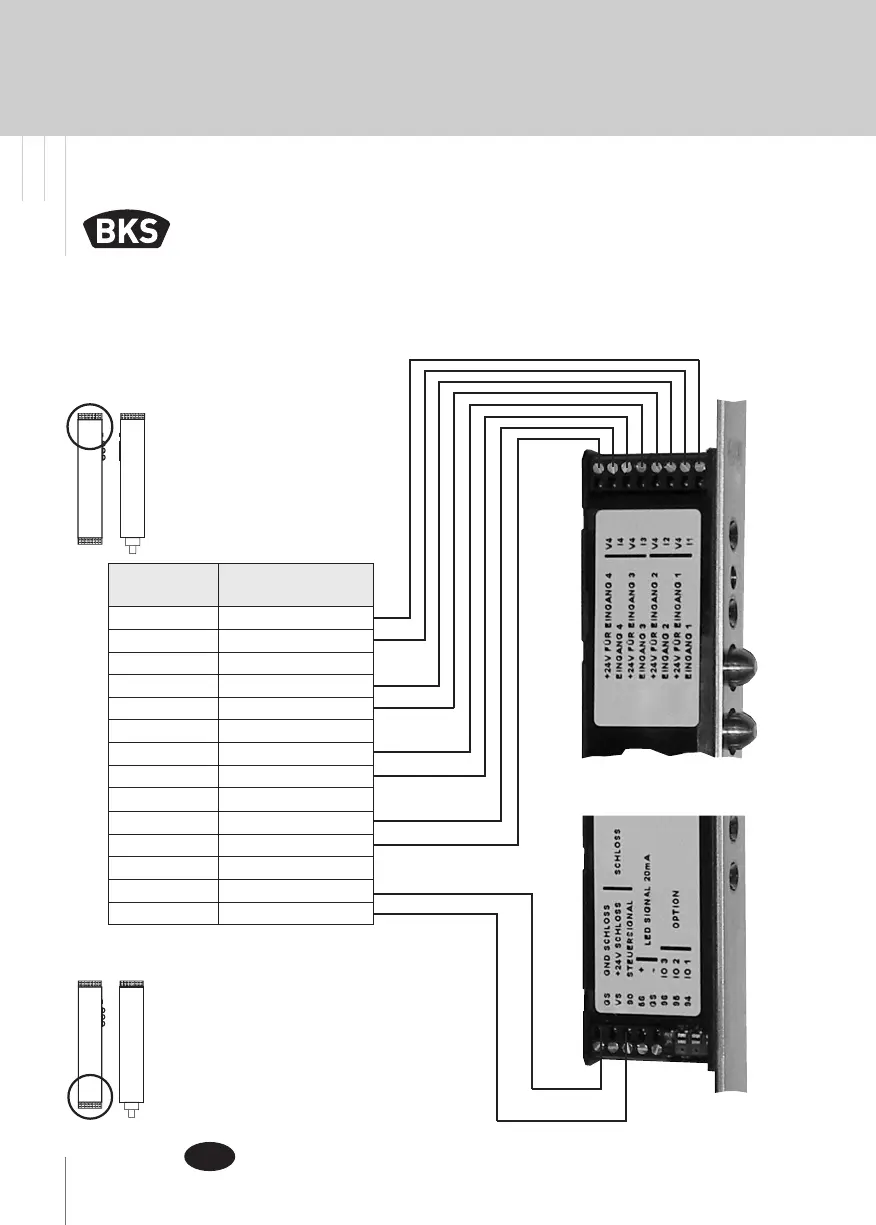

8.6 Connection diagram of ‘EK‘ lock series 21
(with 14-wire connecting cable)
Connecting
cable
Signal
Blue Locked COM
Green Locked NO
Grey LockedNC
Red Cyl. locking cam COM
Yellow Cyl. locking cam NO
Pink Schließbart NC
Purple Handle side 1 COM
Red-blue Handle side 1 NO
Brown-green Handle side 1 NC
White-green Handle side 2 COM
Grey-pink Handle side 2 NO
Black Handle side 2 NC
White GND
Brown + 24 V
