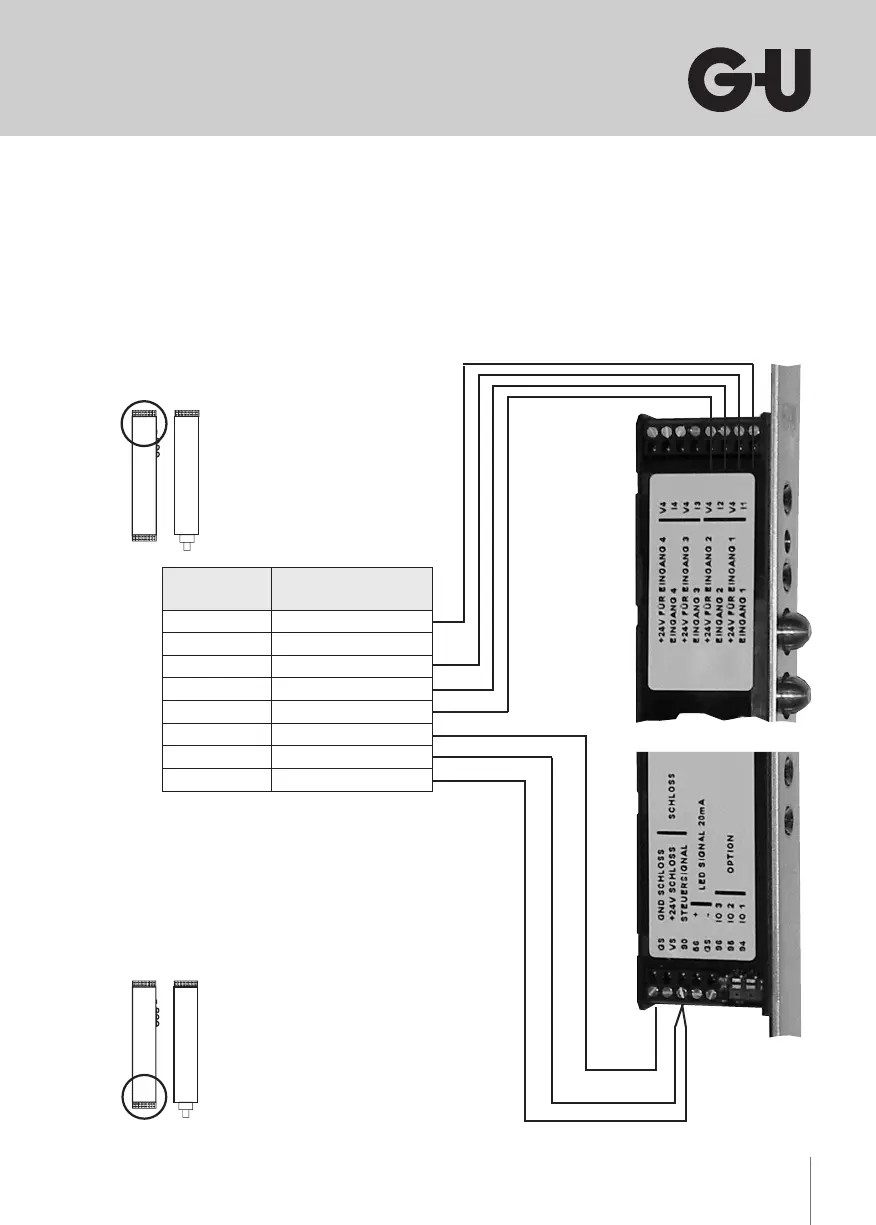

8.7 Connection diagram of ‘EK‘ lock series 21
(with 8-wire connecting cable)
Connecting
cable
Signal
Blue Locked COM
Grey Locked NO
Green Locked NC
Red Cyl. locking cam COM
Yellow Cyl. locking cam NO
White GND
Brown + 24 V
Pink Control line
