6.4 Connection terminals of SECUREconnect 200R
(frame part)

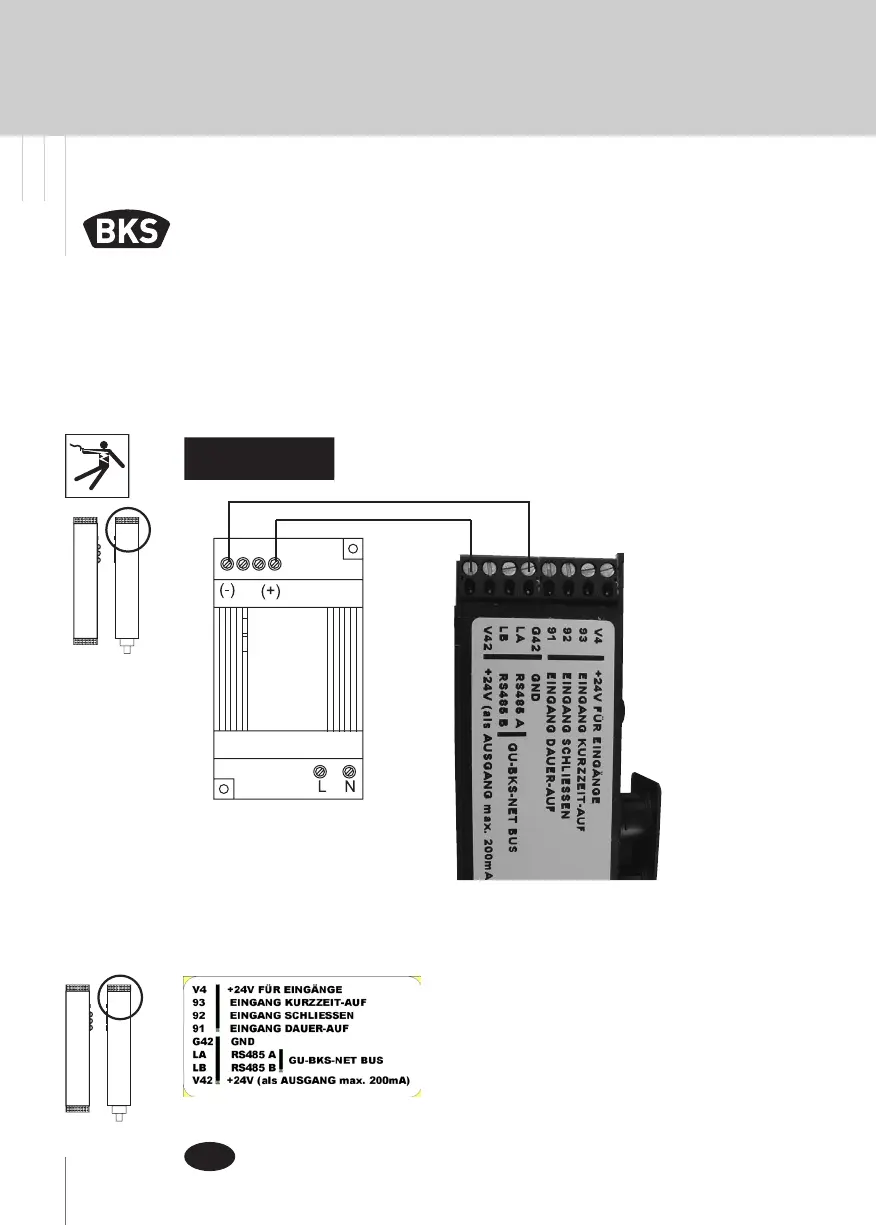

6.4.1 Terminals for external DC 24 V voltage supply
The terminals V and G are provided for the connection of an external
DC V voltage supply to operate SECUREconnect
6.4.2 Connection terminals for BKS-NET bus
Terminals LA and LB are assigned for the connection of the BKS-NET bus.
This bus allows SECUREconnect to
communicate with other compatible bus
participants (e.g. escape door control unit
FTNT). Further functional details are to
be taken from the BKS-NET installation and
operating instructions.
Only DC 24 V voltage sources in accordance with
EN 60950 may be used.
ATTENTION
Stabilized power supply
AC / DC V, A
Connection to “output”
SECUREconnect R
