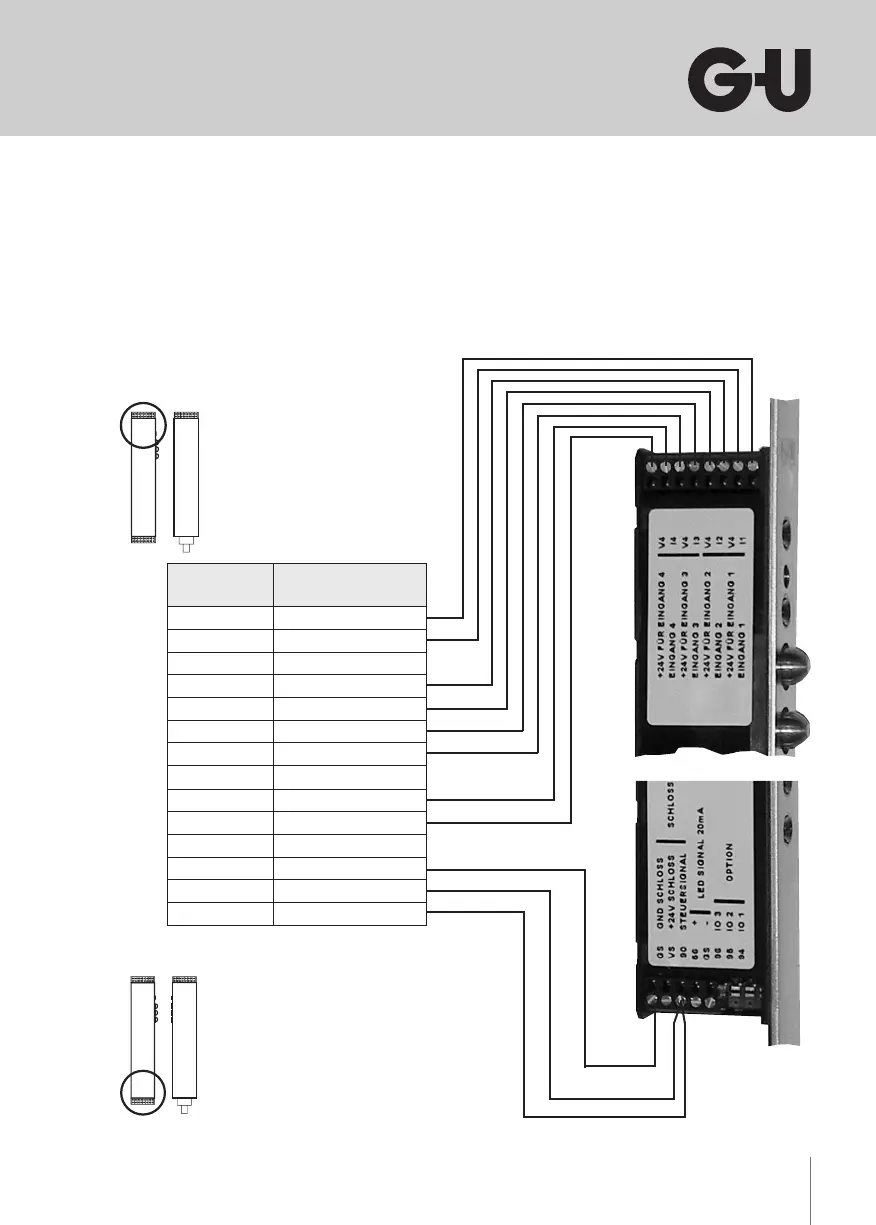

8.5 Connection diagram of ‘EK‘ lock
series 19 (with 14-wire connecting cable)
Connecting
cable
Signal
Blue Locked COM
Green Locked NO
Grey Locked NC
Red Cyl. locking cam COM
Yellow Cyl. locking cam NO
Purple Handle side 1 COM
Red-blue Handle side 1 NO
Brown-green Handle side 1 NC
White-green Handle side 2 COM
Grey-pink Handle side 2 NO
Black Handle side 2 NC
White GND
Brown + 24 V
Pink Control line
