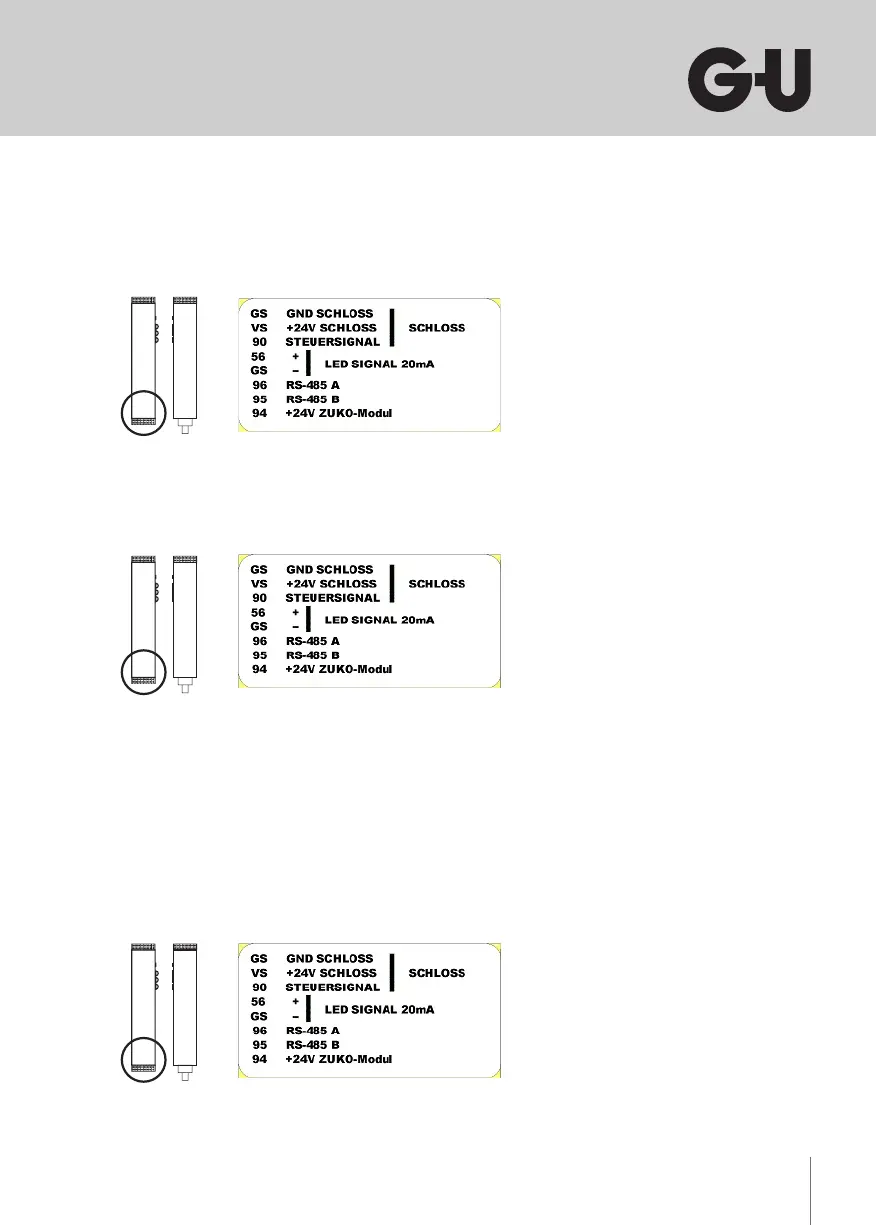

6.3.2 Connection terminals for electrical locks
The terminals GS, VS, and are
provided for the connection of
mechatronic locks from GU-BKS (for
particular connection diagrams see
chapter ).
6.3.3 Connection terminals for LED
Terminals and GS are provided for
the connection of an LED signalling
unlocked status. This is useful, e.g.,
for illuminated door knobs or push
bars. The power output is short circuit
protected and limited to mA which
allows the LED to be connected without
pre-resistor.
Approx. s after door release, the power output is switched on for the
duration of release. The duty ratio depends on the charge condition of the
capacitors with the door OPEN or permanent OPEN mode
6.3.4 Connection terminals for access control module
These terminals are provided for
connection to an access control
module (i.g. finger scanner or PIN code
keypad). A pre-configured system cable
is delivered with the access control
modules. For further details to operate
the access control modules please refer
to the corresponding manuals.
