INSTALLATION & INTERFACING INFORMATION

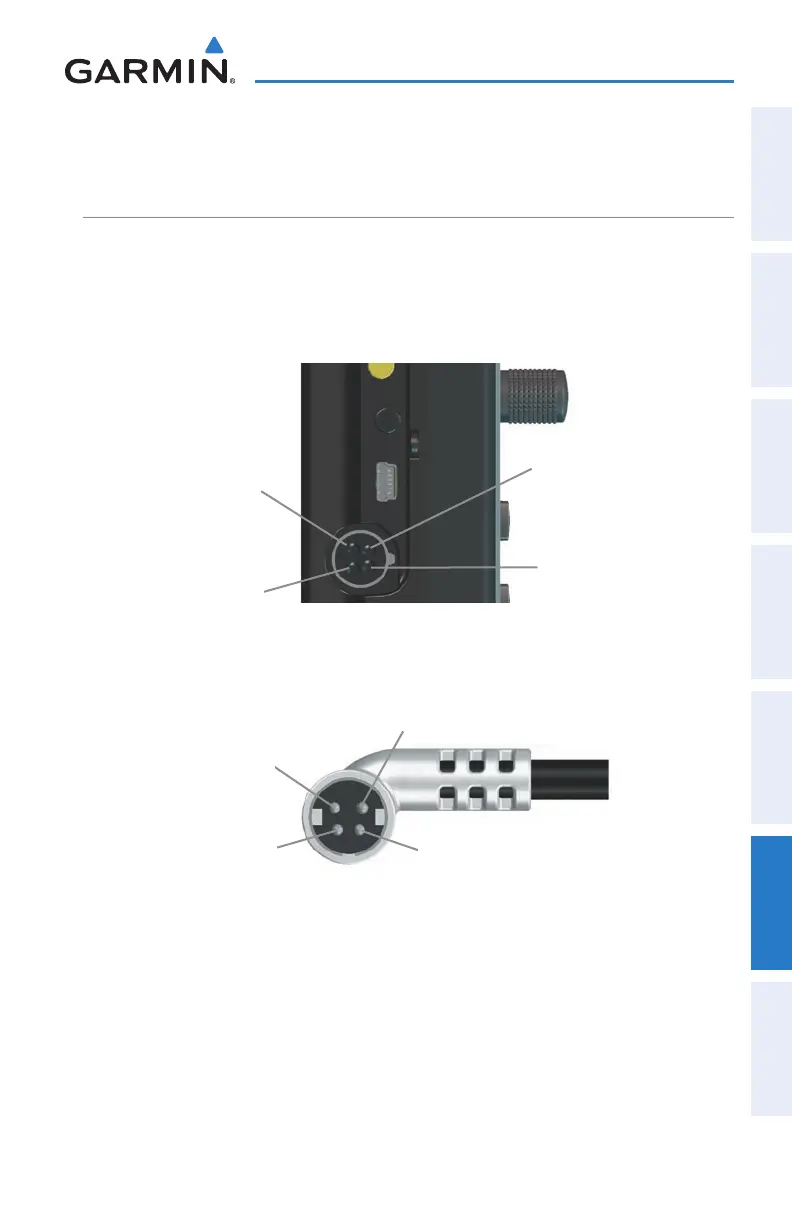

CONNECTING THE POWER/DATA CABLE
The power/data cable connects the GPSMAP 695/696 to an 9-40 VDC system
and provides interface capabilities for connecting external devices. The color code
in the diagram below and to the right indicates the appropriate harness connections.
Replacement fuse is 4 Amp.
Ground (Black)
Data In (Yellow)
Power/Data Connector on the GPSMAP 695/696 Unit
Data Out (Blue)
Power (Red)
Ground (Black)
Data In (Yellow)
Power/Data Connector on the Cable
Data Out (Blue)
Power (Red)
