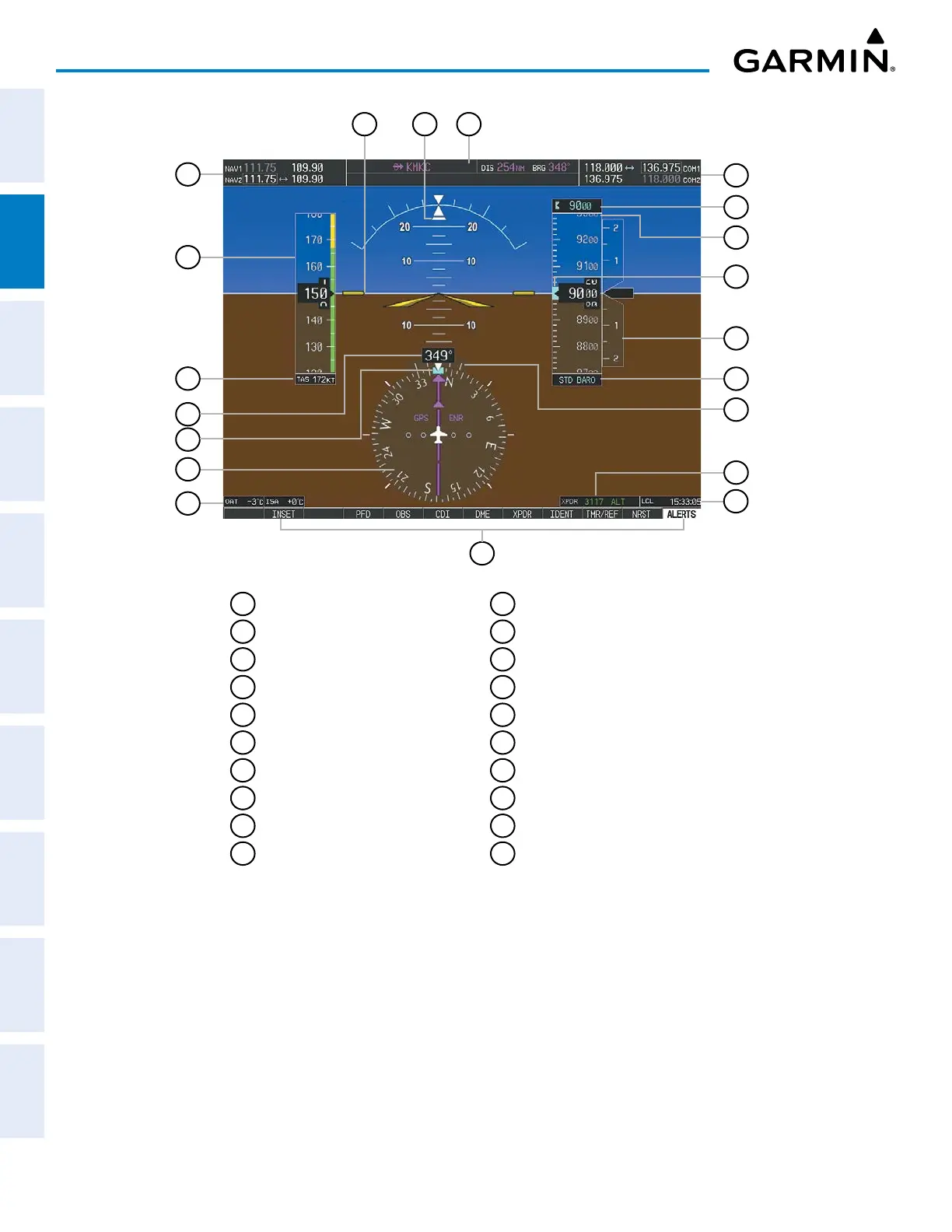

Figure 2-1 Primary Flight Display (Default)
1
NAV Frequency Box
2
Airspeed Indicator
3
True Airspeed
4
Current Heading
5
Heading Bug
6
Horizontal Situation Indicator (HSI)
7
Outside Air Temperature (OAT)
8
Softkeys
9
System Time
10
Transponder Data Box
11
Turn Rate Indicator
12
Barometric Altimeter Setting
13
Vertical Speed Indicator (VSI)
14
Selected Altitude Bug
15
Altimeter
16
Selected Altitude
17
COM Frequency Box
18
Navigation Status Box
19
Slip/Skid Indicator
20
Attitude Indicator
3
16
4
11
15
7
6
20
13
1819
12
14
17
8
9
2
1
10
5
