Runway
Selected for
Approach

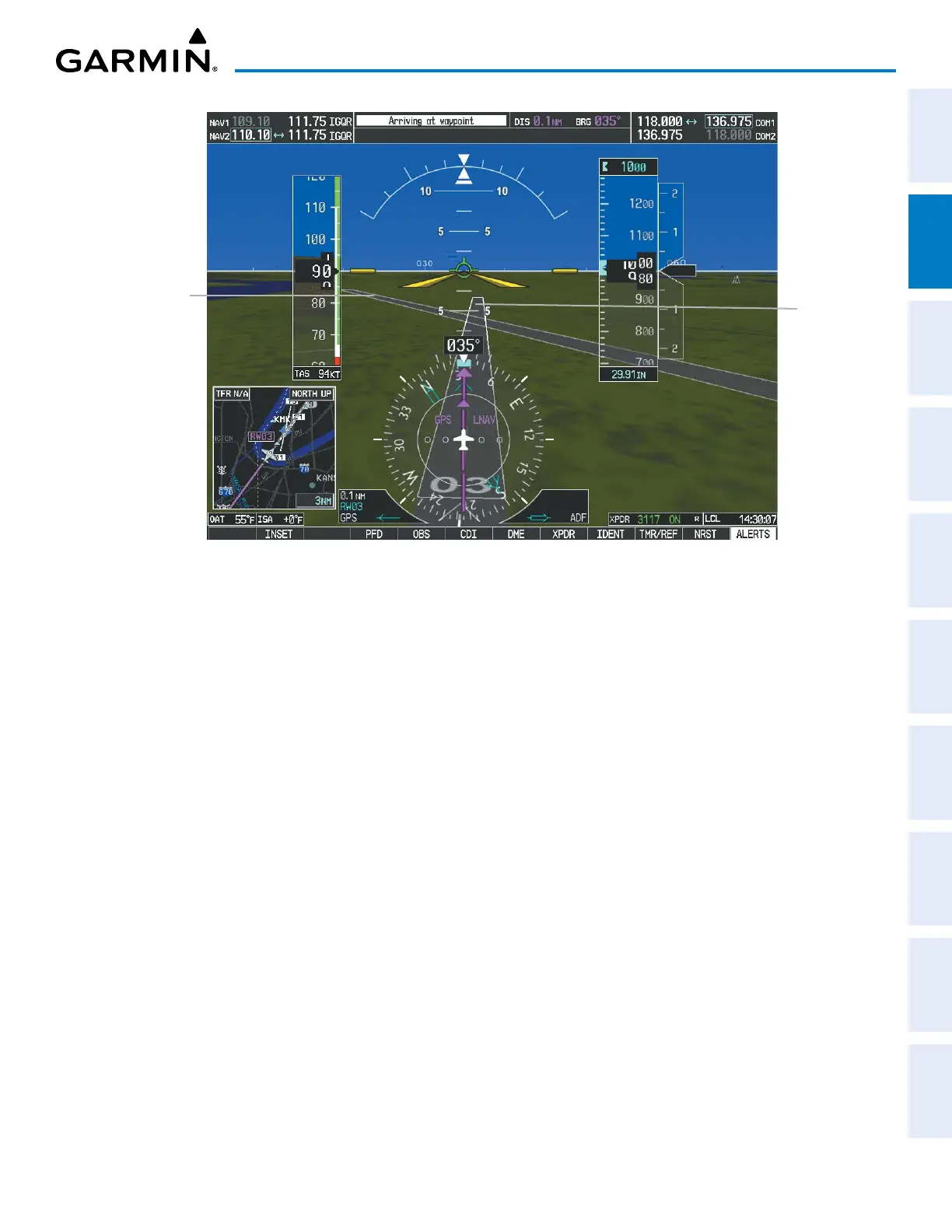

Figure 2-38 Airport Runways
Other
Runway on
Airport
TERRAIN-SVT ALERTING
Terrain alerting on the synthetic terrain display is triggered by Forward-looking Terrain Avoidance (FLTA)
alerts, and corresponds to the red and yellow ‘X’ symbols on the Inset Map and MFD map displays. For more
detailed information regarding Terrain-SVT, refer to the Hazard Avoidance Section.
In some instances, a terrain or obstacle alert may be issued with no conflict shading displayed on the
synthetic terrain. In these cases, the conflict is outside the SVT Field of View to the left or right of the aircraft.
