AT Pro International™
9

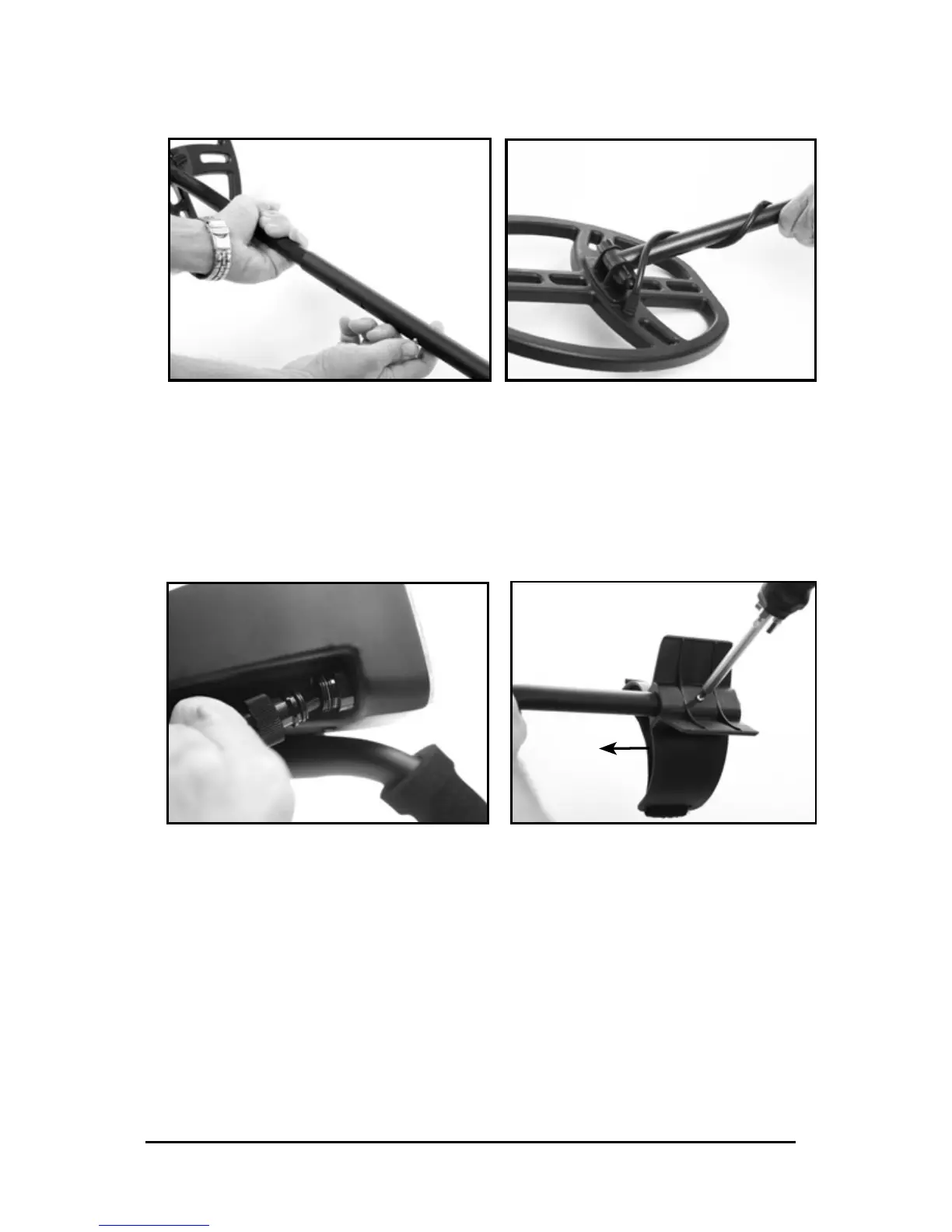

5. Depress the spring clip in the lower stem and adjust to
the most comfortable operating length.
6. Wrap the cable snugly about the stem with the
first turn of the cable over the stem.
7. Insert the coil connector into the 4-pin connector of
the control housing and hand-tighten.
6.
7.
8.
8. If needed, adjust the arm cuff by removing the screw
on the bottom and moving it to the other hole.
5.
