CHAPTER 1-Introduction
Controls and Indicators
DS2000-IFR Installation and Maintenance Guide
1-6

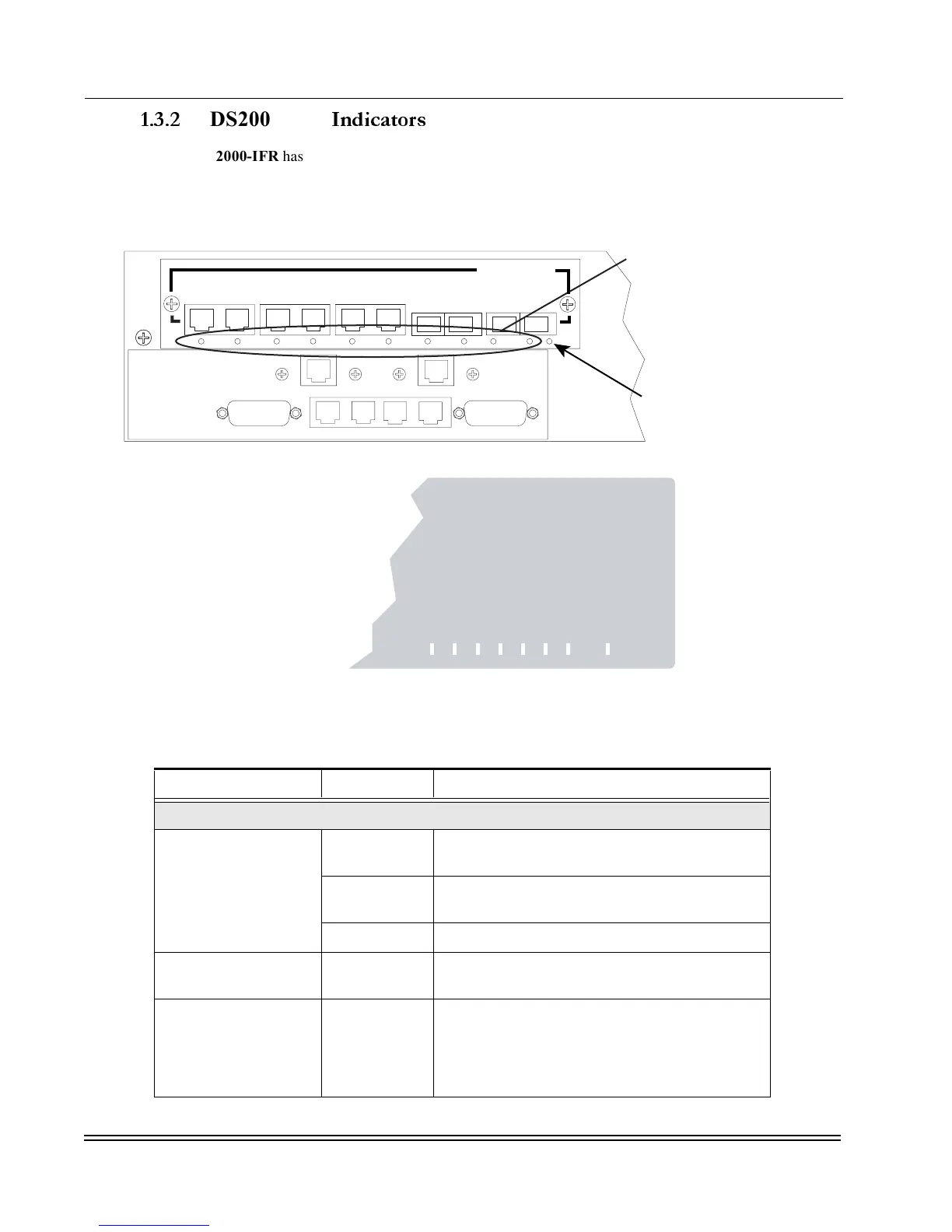

1.3.2 DS2000-IFR Indicators
The DS2000-IFR has LED indicators on the front panel which provide immediate information concerning
the status for the standard port connections. Status indicators are also located under the Ethernet ports on the
rear of the unit. Refer to Figure 1-3 for locations of the LEDs. The LEDs are described in Tab le 1-4 ,below.
Figure 1-3. DS2000-IFR LEDs
Table 1-4. LEDs
LED Name/Location Condition Indication
Front Panel LEDs
Ethernet/
LED for port E0
On Indicates connectivity to another active Ethernet
device for port E0 only
Off Indicates no connection to an active Ethernet
device or network for port E0 only
Flashing Data is passing through the E0 port
Auxiliary 1/
AUX1
On (Amber) N/A (not used)
Auxiliary 2/
AUX2
On Green - indicates that there is a "Link" to an
Ethernet device on one of the Ethernet ports (E1-
E10)
Amber - indicates no active Ethernet devices
connected to ports E1 - E10.
Ethernet
Auxiliary 1
Auxiliary 2
Sync/Async
Async
HS WAN 1
HS WAN 2
System
Made in USA
Front Panel LEDs
Ethernet Port LEDs
Rear Panel
Ethernet
RS232(DEBUG) E0 AUX1 S0 CON AUX 2
W1
W2
Ethernet Board LED
