GatesAir PTR-255 Program Audio Codec Module
Intraplex Products Issue 2.1, February 2006
33
Jumpers on the MA-555 allow selection of the analog audio input impedance, as shown on Figure 5-
2.
JMP1
Audio Input
Impedance Jumpers
JMP1 = Left Channel
JMP2 = Right Channel
In Place = 600 Ohms
Removed = >10K Ohms
JMP2

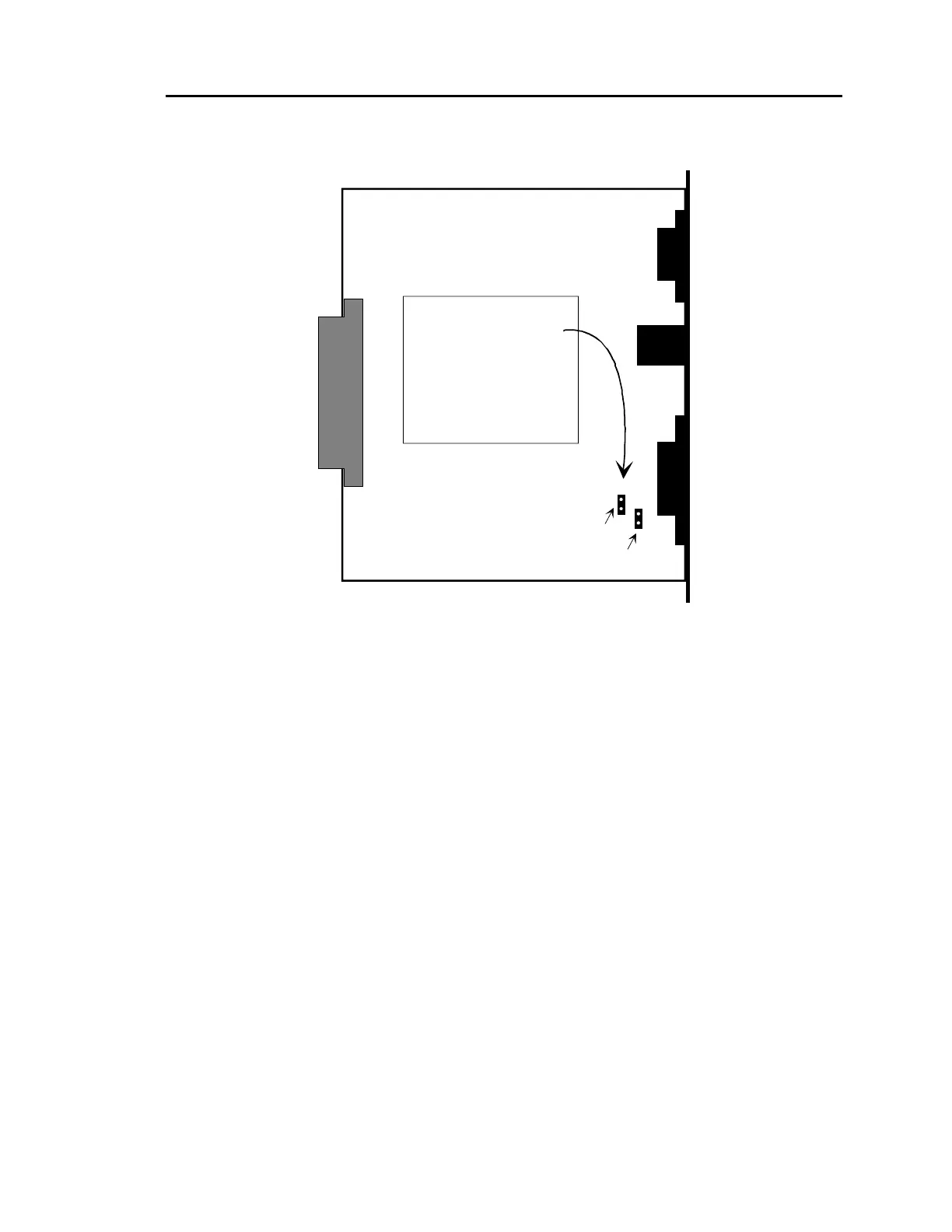

Figure 5-2
Analog Input Impedance Jumpers on the MA-555
The MA-556 provides everything that is on the MA-555, plus connections for transmission of
four contact closures in each direction on the link. Note that the MA-556 is a double-width MA
consisting of two circuit boards joined by brackets; when it is installed at the rear of slots N and
N+1, the PTR-255 must be installed in slot N and slot N+1 must be left blank.
The inputs for the contact closures are optically isolated and can be driven by either a logic output
or switched 5V output, as illustrated in Figure 5-3. The outputs are normally open SPST relay
contacts, both terminals isolated from ground, as shown in Figure 5-4.
The pin assignments for all of the connectors on these MAs are defined in Tables 5-1 through 5-
4.
