GatesAir Intraplex PTR-255 - Audio Interface Panel (AIP)

GatesAir PTR-255 Program Audio Codec Module
Intraplex Products Issue 2.1, February 2006
37

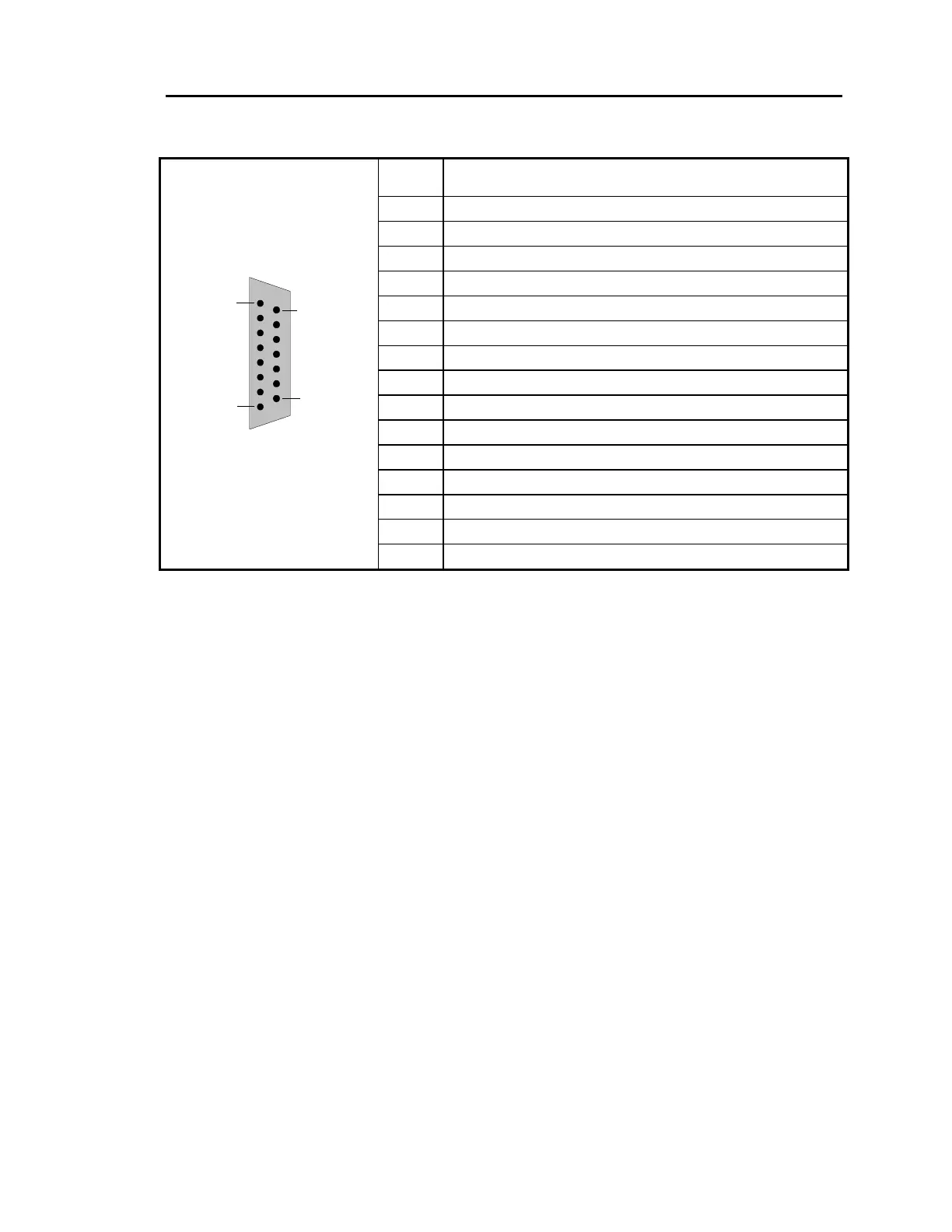

Table 5-4
Pin Assignments on the Relay Output Connector (MA-556)
8
1
9
Relay
Output
Connector
(DB-15S)
15
Pins
Description
1
Ground
2
Ground
3
Ground
4
Output 4A
5
Output 3A
6
Output 2A
7
Output 1A
8
Fused +5V
9
Ground
10
Ground
11
Output 4B
12
Output 3B
13
Output 2B
14
Output 1B
15
Fused +5V
5.2 Audio Interface Panel (AIP)
The Audio Interface Panel, model AIP-12X, is an optional cable management panel for the PTR-
255 which provides the user with the ability to connect the analog and digital inputs and outputs
by means of XLR connectors rather than the 15 and 9 pin D connectors on the MA-555 and MA-
556.
