GatesAir PTR-255 Program Audio Codec Module
Intraplex Products Issue 2.1, February 2006
36
4
Not used
5
Not used
6
Ground

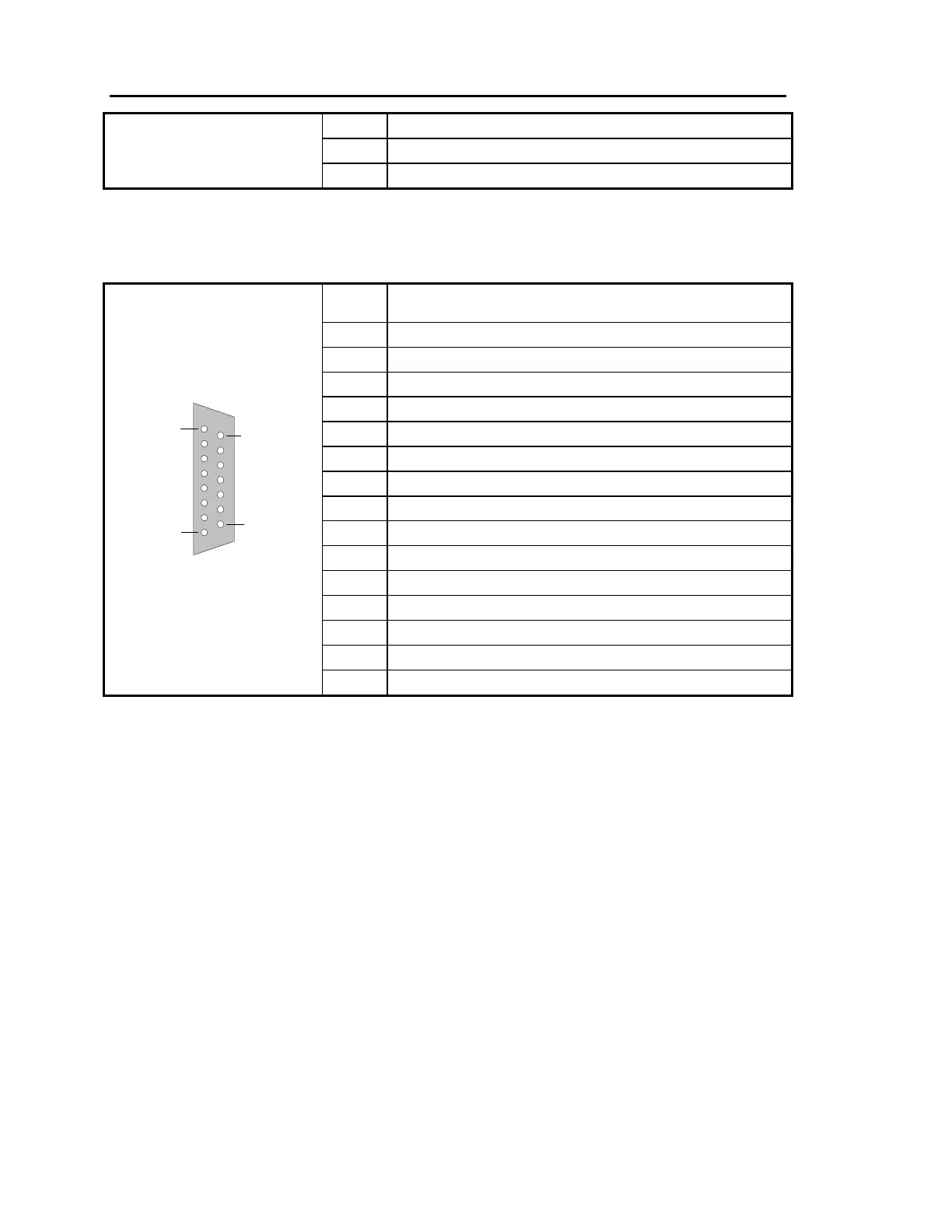

Table 5-3
Pin Assignments on the Logic Input Connector (MA-556)
1
8
15
Logic
Input
Connector
(DB-15P)
9
Pins
Description
1
Fused +5V
2
Input 1 (+)
3
Input 2 (+)
4
Input 3 (+)
5
Input 4 (+)
6
Ground
7
Ground
8
Ground
9
Fused +5V
10
Input 1 (-)
11
Input 2 (-)
12
Input 3 (-)
13
Input 4 (-)
14
Ground
15
Ground
