170
Chapter 7: Adding or Replacing Components
www.gateway.com
9 Connect the drive’s data and power cables. The red-striped edge of the data
ribbon cable indicates Pin 1 and corresponds with Pin 1 on the drive
(typically on the side farthest from the power supply connection). See the
drive documentation for further instructions.

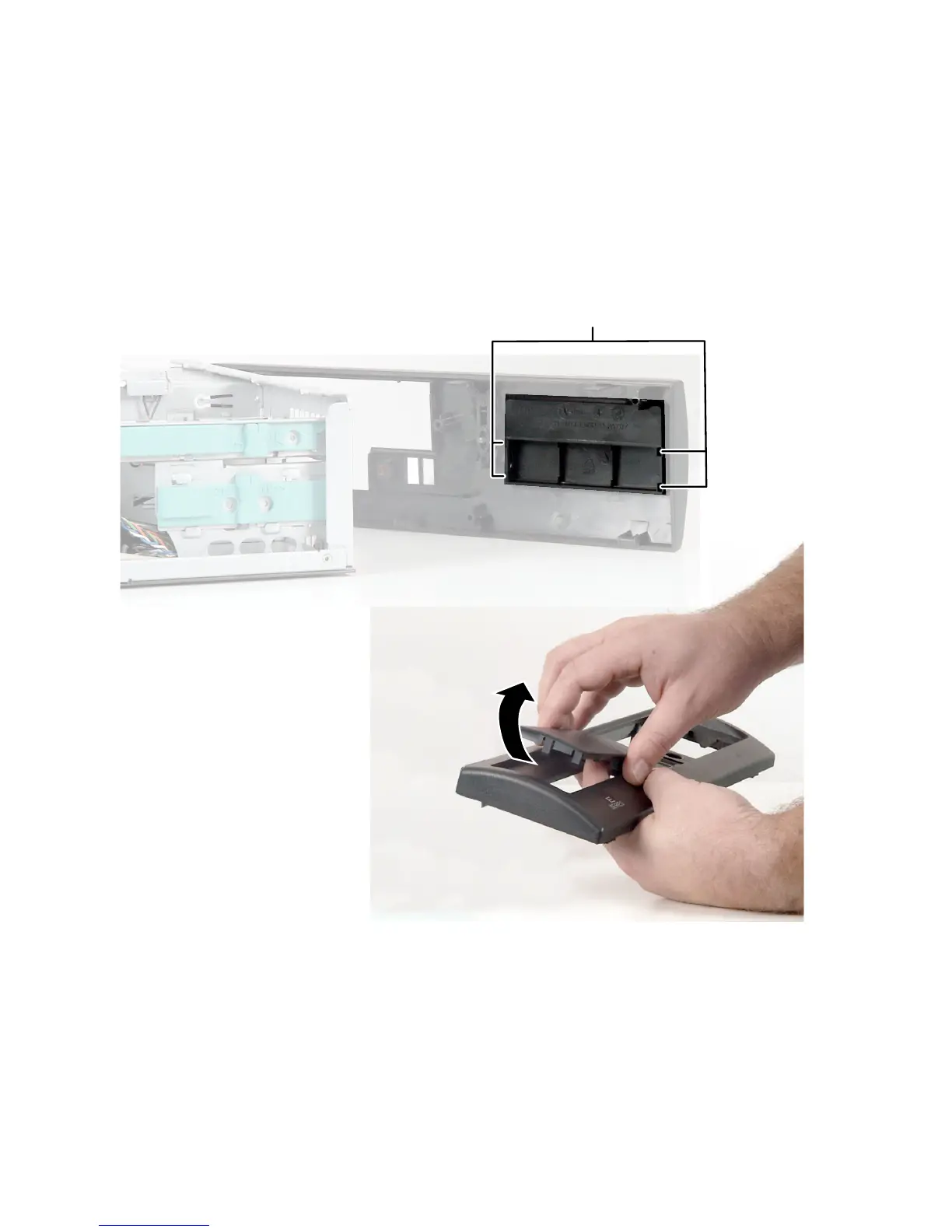

10 Press in on the four bezel cover release tabs, then remove the bezel cover.
Store the bezel cover in a safe place in case you have to reinstall it.
Bezel release tabs
