Chapter 5 161

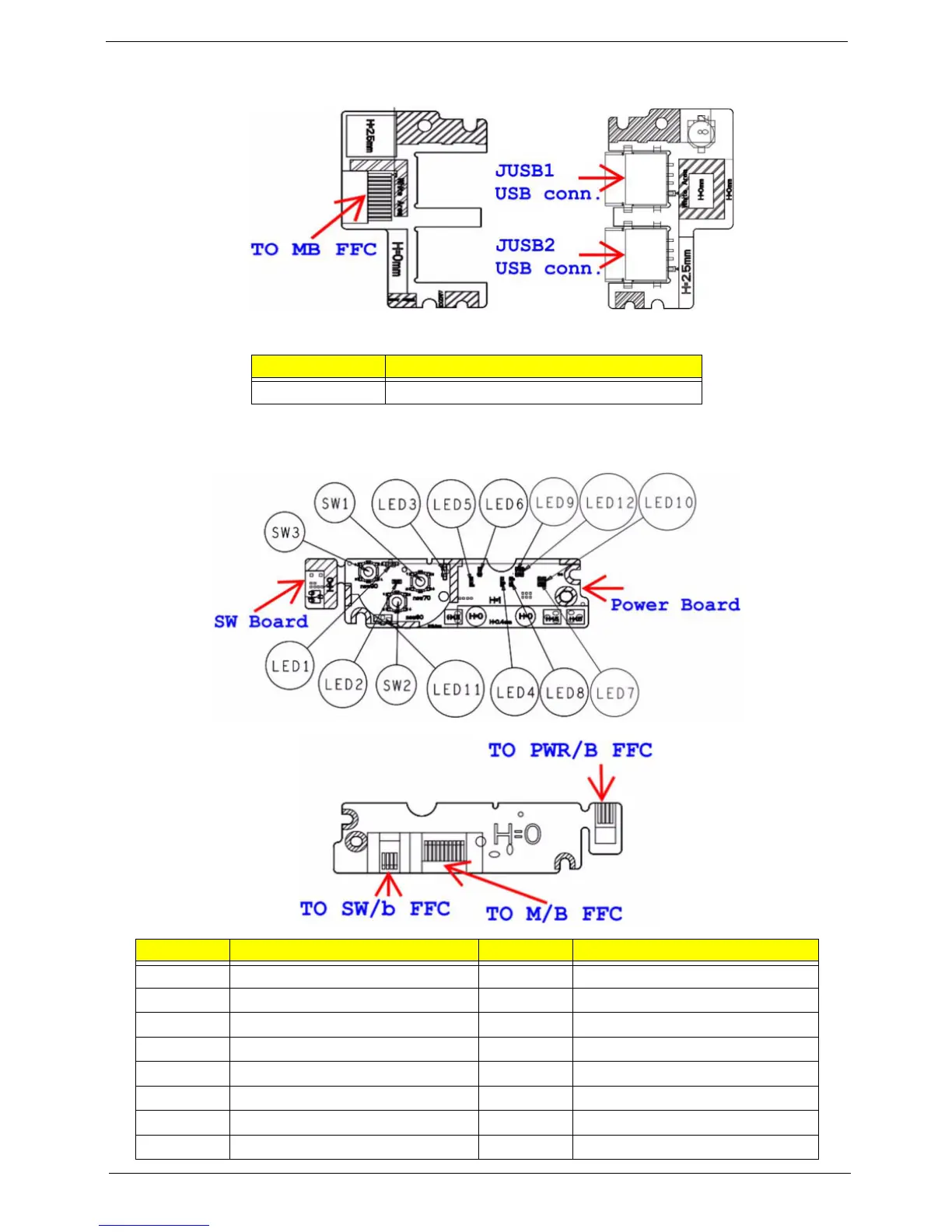

USB/B Board
Power Board
ITEM DESCRIPTION
JUSB1/JUSB2 USB Connector
ITEM DESCRIPTION ITEM DESCRIPTION
LED1 For NEW70 ON/OFF LED LED9 For NEW50 WWAN LED
LED2 For NEW80 ON/OFF LED LED10 For NEW70 WLAN LED
LED3 For NEW90 ON/OFF LED LED11 For NEW50 POWER LED
LED4 For NEW70 MEDIA LED LED12 For NEW50/NEW90 WLAN LED
LED5 For NEW80 MEDIA LED SW1 For NEW70 Power BTN
LED6 For NEW50/NEW90 MEDIA LED SW2 For NEW80 Power BTN
LED7 For NEW70 WWAN LED SW3 For NEW90 Power BTN
LED8 For NEW80 WLAN LED
