88 Chapter 3
Removing the LCD Bezel
1. See “Removing the LCD Assembly” on page 85.

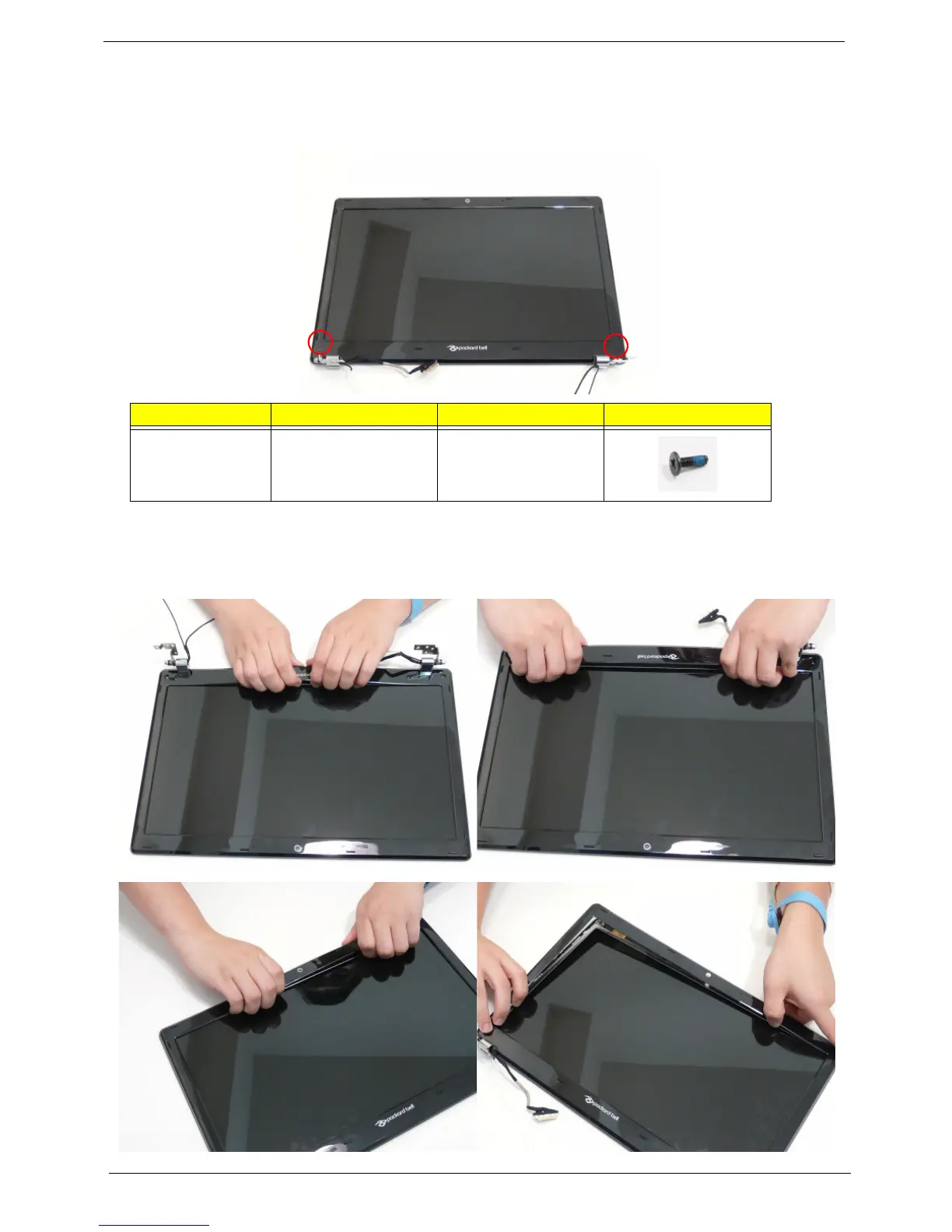

2. Remove the two (2) bezel screw caps and screws.
3. Starting from the bottom edge of the bezel, pry the bezel upwards and away from the panel. Work along the
right side toward the top of the bezel, prying the covers apart. Continue along the top edge and down the left
side to remove the bezel.
NOTE: If necessary, use a pry to lift up the outside edges of the bezel.
Step Size Quantity Screw Type
LCD Bezel M2.5*6 2
