Gateway NV59C Series User Manual

Chapter 5 159
Jumper and Connector Locations

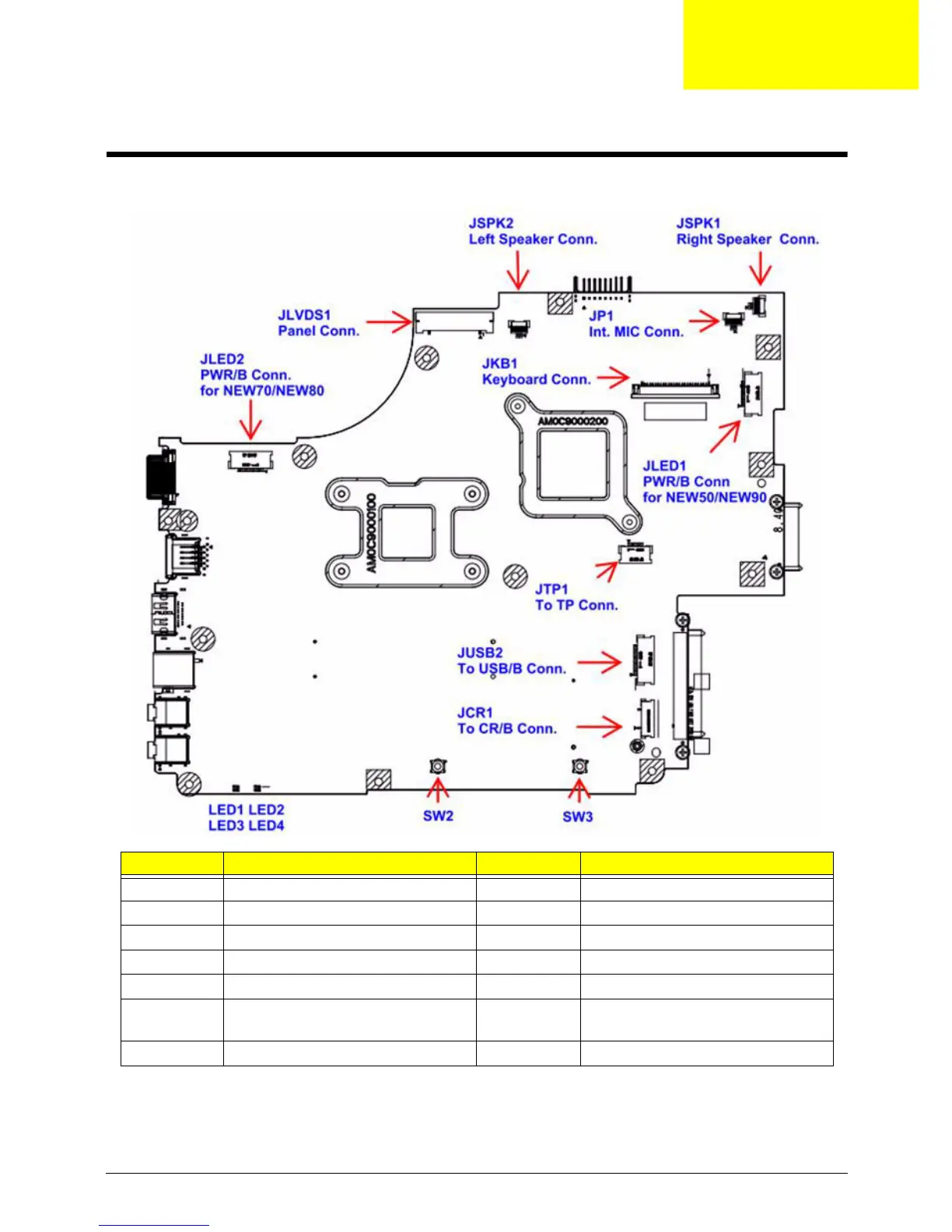

Top View
Item Description Item Description
JLVDS1 Connect to LED / CCFL Panel JLED1 Connect to Powerboard (FFC)
JSPK2 Connect to Left Speaker JLED2 Connect to Powerboard (FFC)
JSPK1 Connect to Right Speaker JP1 Connect to internal MIC
JKB1 Connect to Keyboard SW2/SW3 Left button / Right button
JTP1 Connect to Touch pad (FFC) LED1/LED3 Power State Indicator
JUSB2 Connect to Power USB Board
(FFC)
LED2/LED4 Battery Charging Indicator
JCR1 Connect Card Reader Board (FFC)
