56
Chapter 3

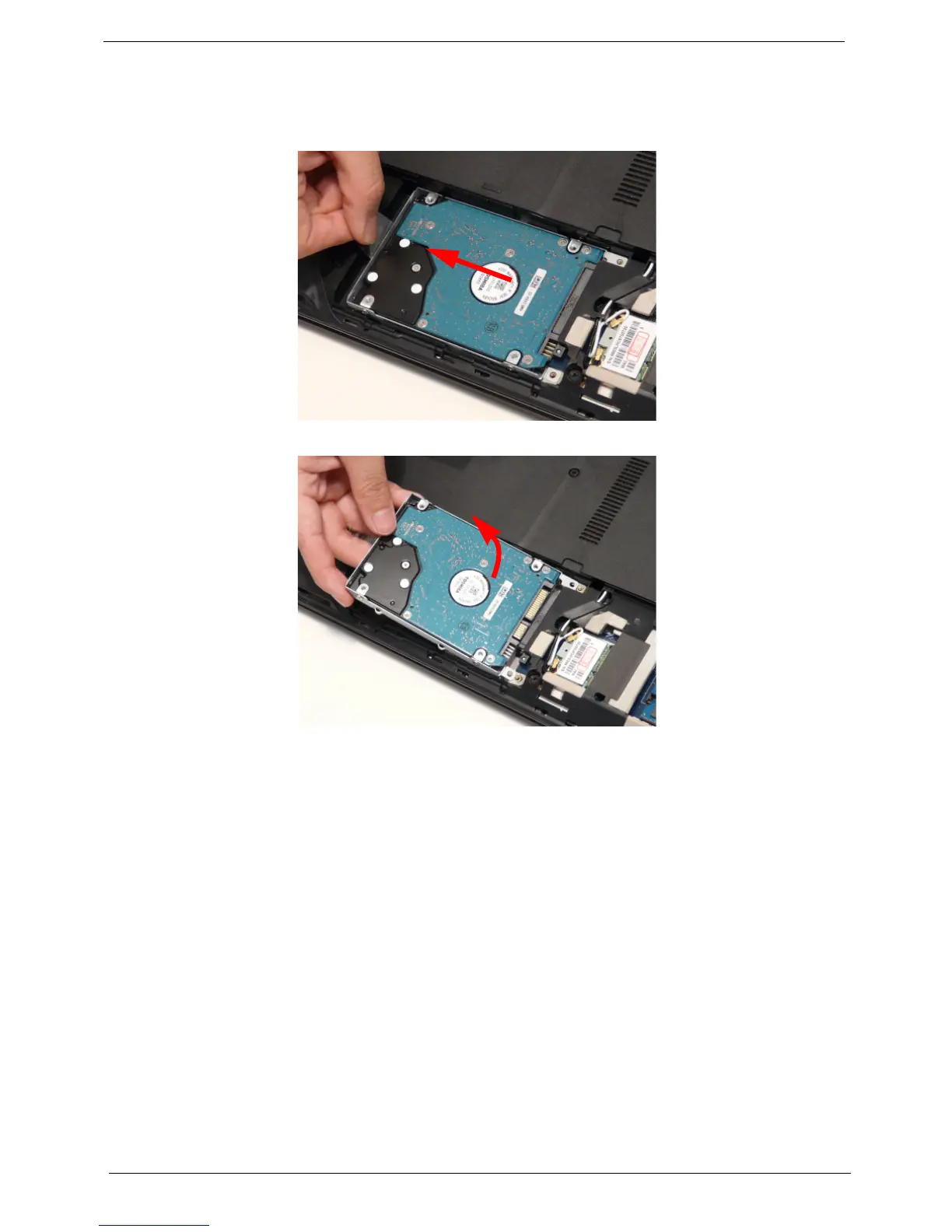

Removing the Hard Disk Drive Module
1.
See “Removing the HDD/WLAN/DIMM Door” on page 50.
2.
Using the pull-tab, slide the HDD Module in the di
recti
on of the arrow to disco
nnect the interface.
3.
Lift the HDD Module clear of the HDD bay
.
NOTE:
T
o prevent damage
to device, avoid pressing down on it or placing heavy objects on top of it.
65
67
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
7
System Specifications
11
Features
11
Storage Subsystem
12
Optical Media Drive
12
Dimensions and Weight
12
Privacy Control
13
Power Subsystem
13
Special Keys and Controls
13
Optional Items
14
System Block Diagram
15
Your Acer Notebook Tour
16
Front View
16
Closed Front View
17
Left View
18
Right View
19
Bottom View
19
Indicators
20
Touchpad Basics
21
Using the Keyboard
22
Lock Keys and Embedded Numeric Keypad
22
Windows Keys
23
Hot Keys
24
Hardware Specifications and Configurations
26
System Utilities
33
BIOS Setup Utility
33
Navigating the BIOS Utility
33
Gateway NV59C BIOS
34
Information
34
Main
35
Security
36
Setting a Password
37
Removing a Password
37
Changing a Password
38
Boot
39
Exit
40
BIOS Flash Utilities
41
DOS Flash Utility
42
Winflash Utility
44
Remove HDD/BIOS Password Utilities
45
Using Boot Sequence Selector
47
Using Dmitools
48
Using the Lan Mac Eeprom Utility
49
Machine Disassembly and Replacement
51
Disassembly Requirements
51
Pre-Disassembly Instructions
52
Disassembly Process
53
External Module Disassembly Process
54
External Modules Disassembly Flowchart
54
Removing the Battery Pack
55
Removing the SIM Card
56
Removing the SD Dummy Card
57
Removing the Optical Drive Module
58
Removing the HDD/WLAN/DIMM Door
60
Removing the 3G Module
61
Removing the DIMM Module
63
Removing the WLAN Module
64
Removing the Hard Disk Drive Module
66
Main Unit Disassembly Process
68
Main Unit Disassembly Flowchart
68
Removing the Keyboard
70
Removing the Upper Cover
72
Removing the Left Speaker Module
76
Removing the Right Speaker Module
77
Removing the Power Board
79
Removing the Touchpad Bracket
80
Removing the Card Reader Board
82
Removing the USB Board
84
Removing the Bluetooth Board
86
Removing the Mainboard
87
Removing the Thermal Module
91
Removing the CPU
93
LCD Module Disassembly Process
94
LCD Module Disassembly Flowchart
94
Removing the LCD Assembly
95
Removing the LCD Bezel
98
Removing the Camera Module
99
Removing the Inverter Board
100
Removing the LCD Panel
102
Removing the LCD Brackets and FPC Cable
104
Removing the Microphone Cable
106
Removing the Antennas
108
LCD Module Reassembly Procedure
110
Replacing the Antennas
110
Replacing the Microphone Cable
112
Replacing the LCD Brackets and FPC Cable
113
Replacing the LCD Panel
115
Replacing the Inverter Board
116
Replacing the Camera Module
117
Replacing the LCD Bezel
118
Replacing the LCD Assembly
119
Main Module Reassembly Procedure
122
Replacing the CPU
122
Replacing the Thermal Module
123
Replacing the Mainboard
124
Replacing the Bluetooth Board
127
Replacing the USB Board
128
Replacing the Card Reader Board
129
Replacing the Touchpad Bracket
130
Replacing the Power Board
132
Replacing the Right Speaker Module
133
Replacing the Left Speaker Module
134
Replacing the Upper Cover
135
Replacing the Keyboard
138
Replacing the Hard Disk Drive Module
139
Replacing the WLAN Module
140
Replacing the DIMM Modules
141
Replacing the 3G Module
142
Replacing the HDD/WLAN/DIMM Door
144
Replacing the ODD Module
145
Replacing the SD Dummy Card
146
Replacing the SIM Card
147
Replacing the Battery
148
Troubleshooting
149
Common Problems
149
Power on Issue
150
No Display Issue
151
Random Loss of BIOS Settings
152
LCD Failure
153
Built-In Keyboard Failure
153
Touchpad Failure
154
Internal Speaker Failure
154
Sound Problems
155
Microphone Problems
155
HDD Not Operating Correctly
156
ODD Failure
157
Wireless Function Failure
160
Thermal Unit Failure
160
External Mouse Failure
161
Other Failures
161
Intermittent Problems
162
Undetermined Problems
162
Post Codes
163
Jumper and Connector Locations
169
Top View
169
Bottom View
170
USB/B Board
171
Power Board
171
3G/B Board
172
CR/B Board
172
Clearing Password Check and BIOS Recovery
173
Clearing Password Check
173
Clear CMOS Jumper
173
BIOS Recovery by Crisis Disk
174
FRU (Field Replaceable Unit) List
175
Easynote Exploded Diagrams
176
Main Assembly
176
Upper Assembly
177
LCD Assembly
178
FRU List
179
Screw List
186
Model Definition and Configuration
188
Gateway NV59C
189
Test Compatible Components
203
Microsoft® Windows® 7 Environment Test
204
Online Support Information
217
Index
219
