64 Chapter 3
NOTE: Avoid pulling on cables directly to prevent damage to the connectors.
NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

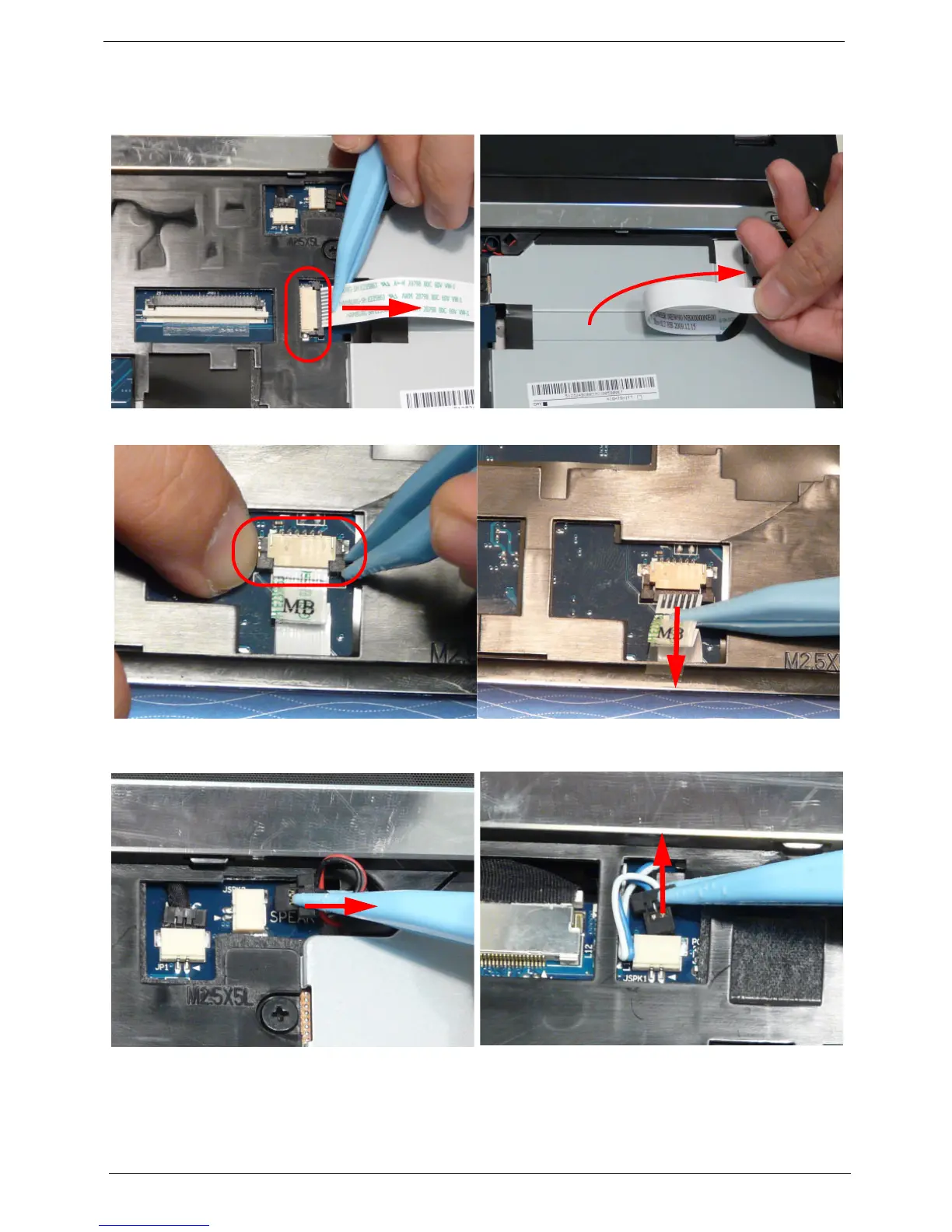

4. Release the locking latch on A and disconnect the
cable.
5. Pull the cable off the adhesive as shown.
6. Release the locking latch on B and remove the cable as shown.
7. Release the locking latch on C and remove the
cable as shown.
8. Release the locking latch on D and remove the
cable as shown.
