GA600AC Sliding Gate Opener User Manual
Figure 7
Step 4 - Motor Pad Footing
· The motor pad concrete footing requires an area of no less than 450mm long x 350mm wide
and a minimum depth of 200mm (Standard requirement).

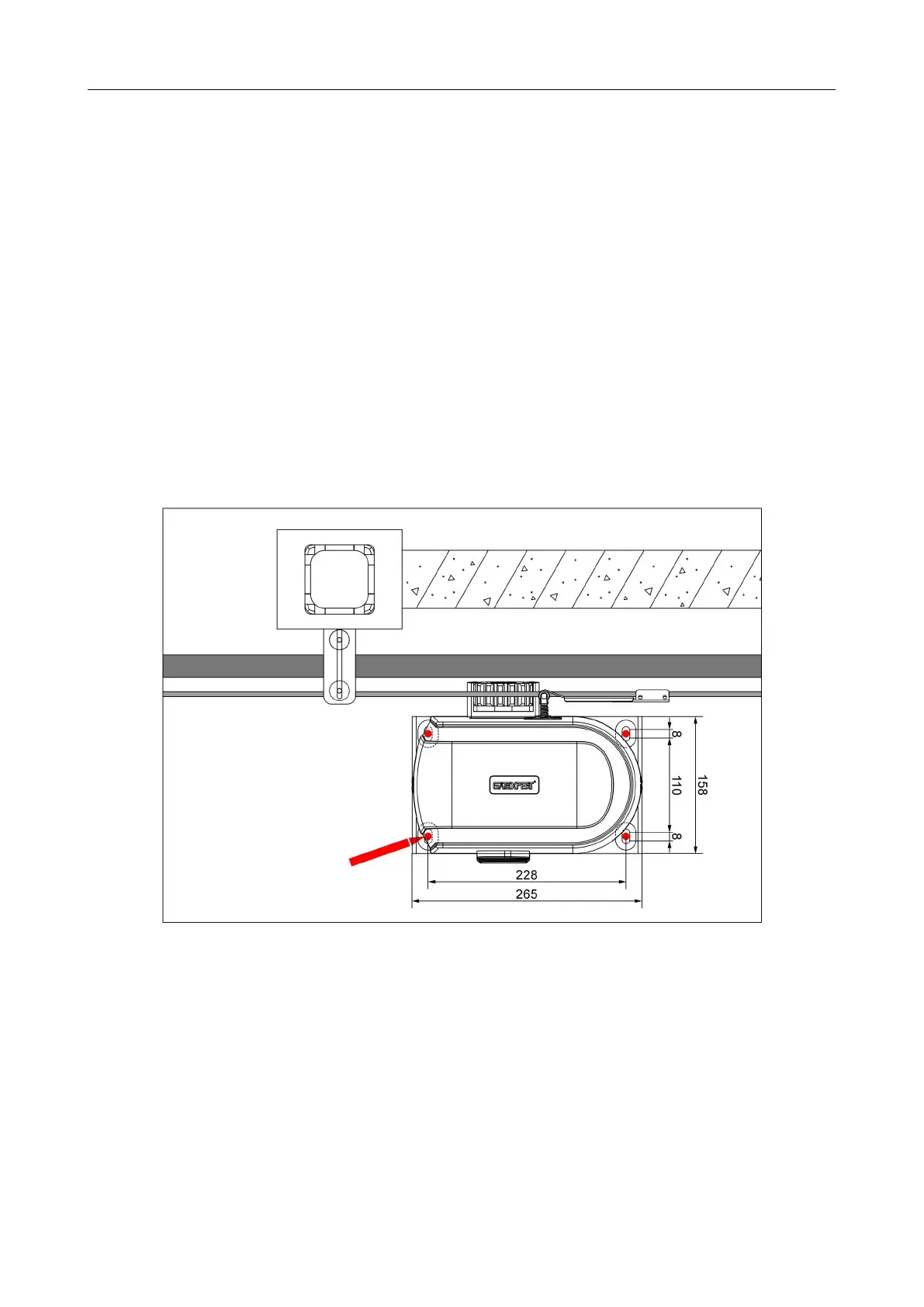

· Put the mounting base plate into a suitable position (The center line of rack and drive gear
should be roughly on a line, as in Figure 8.), mark it well; use a 12mm concrete drill bit to make
holes and tap the M8 expansion bolts into the punched holes, with the top exposed for about 2cm.
(Customers can provide their own M8 ground screws instead of expansion bolts for pre-burial to the
concrete foundation.)
Use pencil, chalk or similar
tools to mark at the corners
of mounting plate.
To Next Page
