GA600AC Sliding Gate Opener User Manual

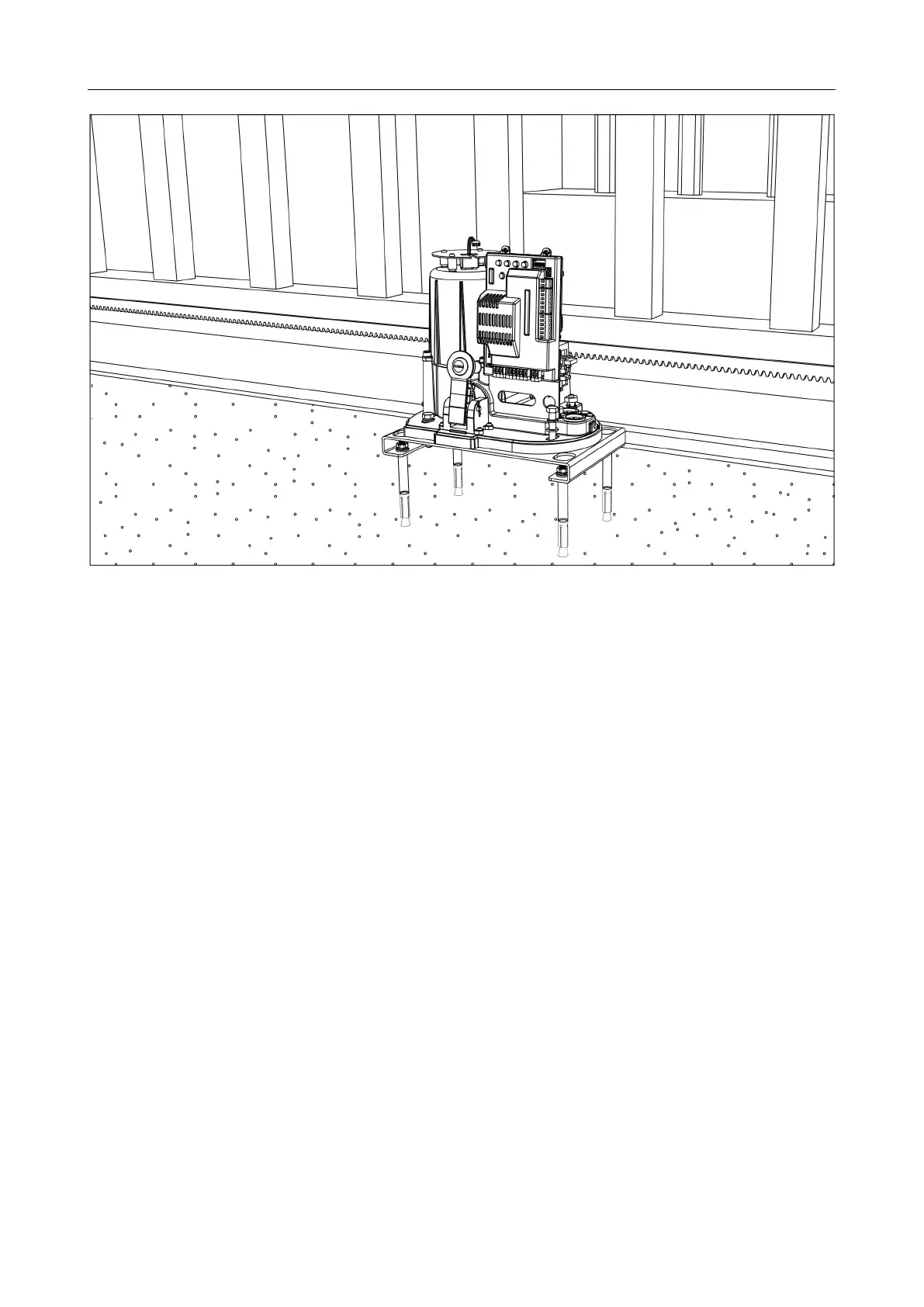

Figure 10
Step 6 - Motor Position Adjustment
· Place the motor and mounting plate on the concrete base.
· After placing, the motor can be fine-tuned back and forth, and tighten the fixing bolts after putting it
in the right position.
Step 7 - Gear Rack & Motor Alignment
· Ensure that the output gear has a minimum clearance of 1.5-2.5mm along the entire length of
gear rack fitted to the gate (as per Figure 11).
· Ensure output gear and gear rack are correctly aligned. Under no circumstances should the gate
opener output gear carry any weight of the gate. It is the task of the gate castors or wheels to
carry the weight of the gate.
· If the gate doesn’t slide freely by hand, adjust the height of the gear rack accordingly until the full
length of gate slides freely by hand.
