GA600AC Sliding Gate Opener User Manual

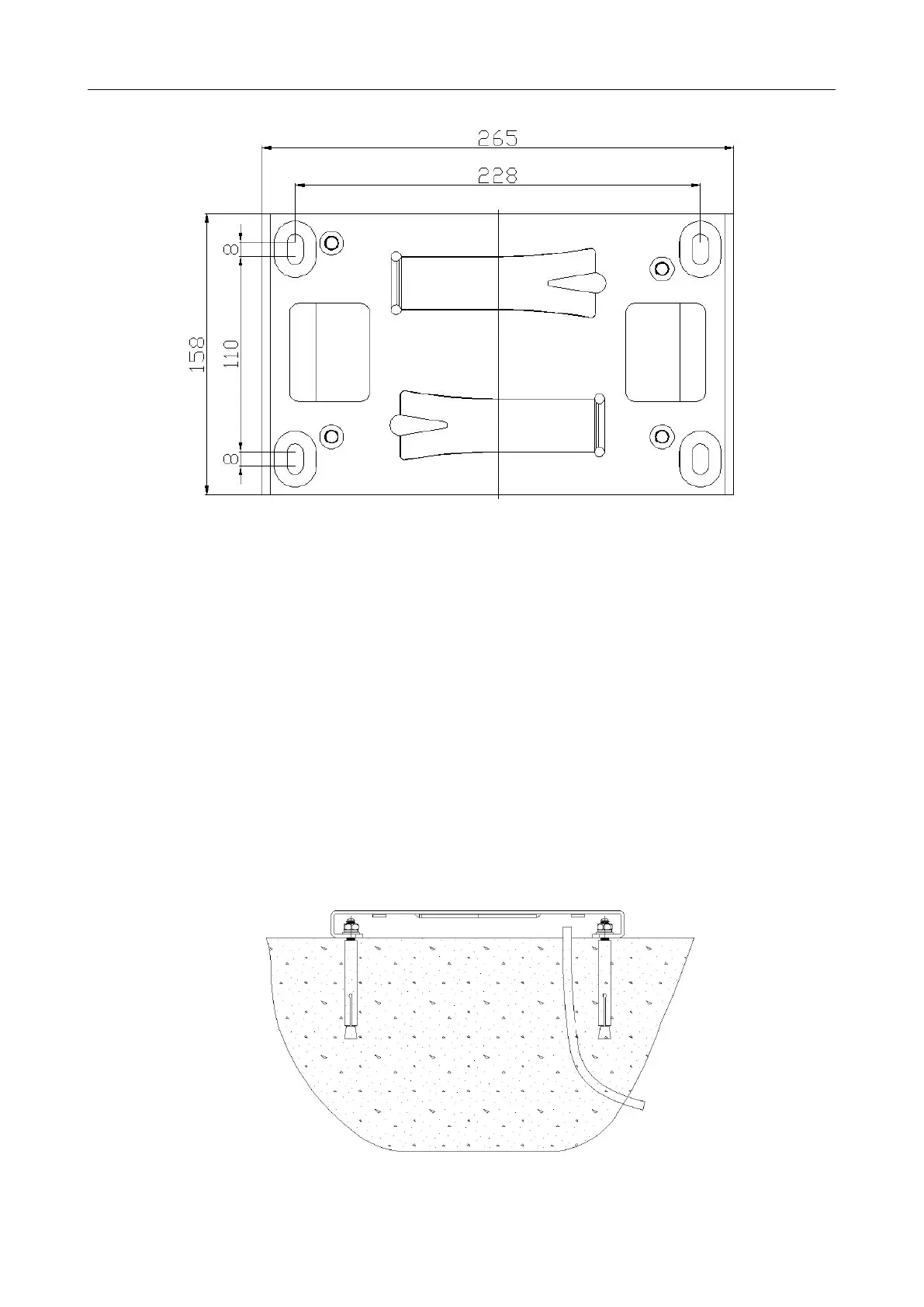

Figure 8
Mounting Plate Dimensions
Step 5 - Fitting Mounting Plate and Motor
· Place the mounting plate and pre-fix it, tighten the nuts making sure to add spring and flat
washers (see Figure 9).
· Pre-position the machine according to (Figure 10) to ensure that the machine output gears and
racks are aligned and that the gears and racks are centered as far as possible (see Figure 11).
Tighten the expansion bolts and nuts on the mounting plate (ground screws are available).
· Secure the motor to the mounting plate by pre-tightening the bolts using M8x40 mm bolts with
spring and flat washers.
Figure 9
To Next Page
