GA600AC Sliding Gate Opener User Manual

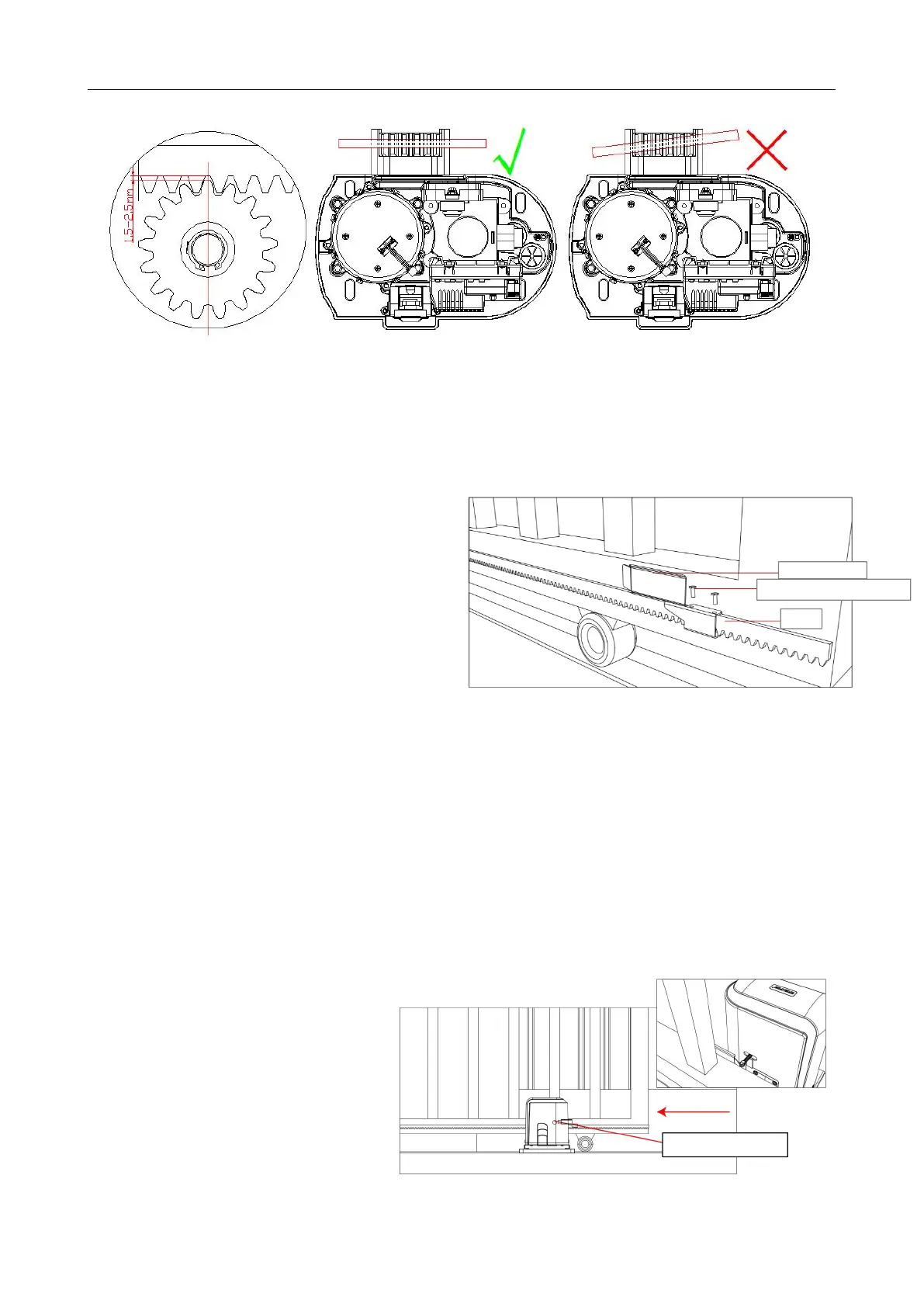

Figure 11
Step 8 - Limit Switch Stops
A. Spring Limit Switch
（
6-1-1Accessories
）
Included in your gate opener kit are two limit
switch stops which must be fitted to the gear
racks on your gate to ensure safe operation.
The limit switch stops are designed to set the
desired opening and closing position of your gate. These limit switch stops are designed to come
into contact with the spring/magnetic limit switch.
It is extremely dangerous that without or incorrect installation of the limit switch stops can cause
crash of gate, damage of internal structure of the motor, moreover, the gate may slide off the guide
rail.
Setting the Limit Switch Stops
Closed Position
· Position gate 150-200mm back
from the gate end catch closed position.
This will help in making sure you do not
slam the gate into the end stop/catch
when setting the closed position under
power.
Limit switch stop mounting screws
To Next Page
