GAUI NX4 - Tail Push Rod Assembly; Throttle Servo Assembly

GAUI
TAI SHIH HOBBY CORPORATION
GAUI
TAI SHIH HOBBY CORPORATION

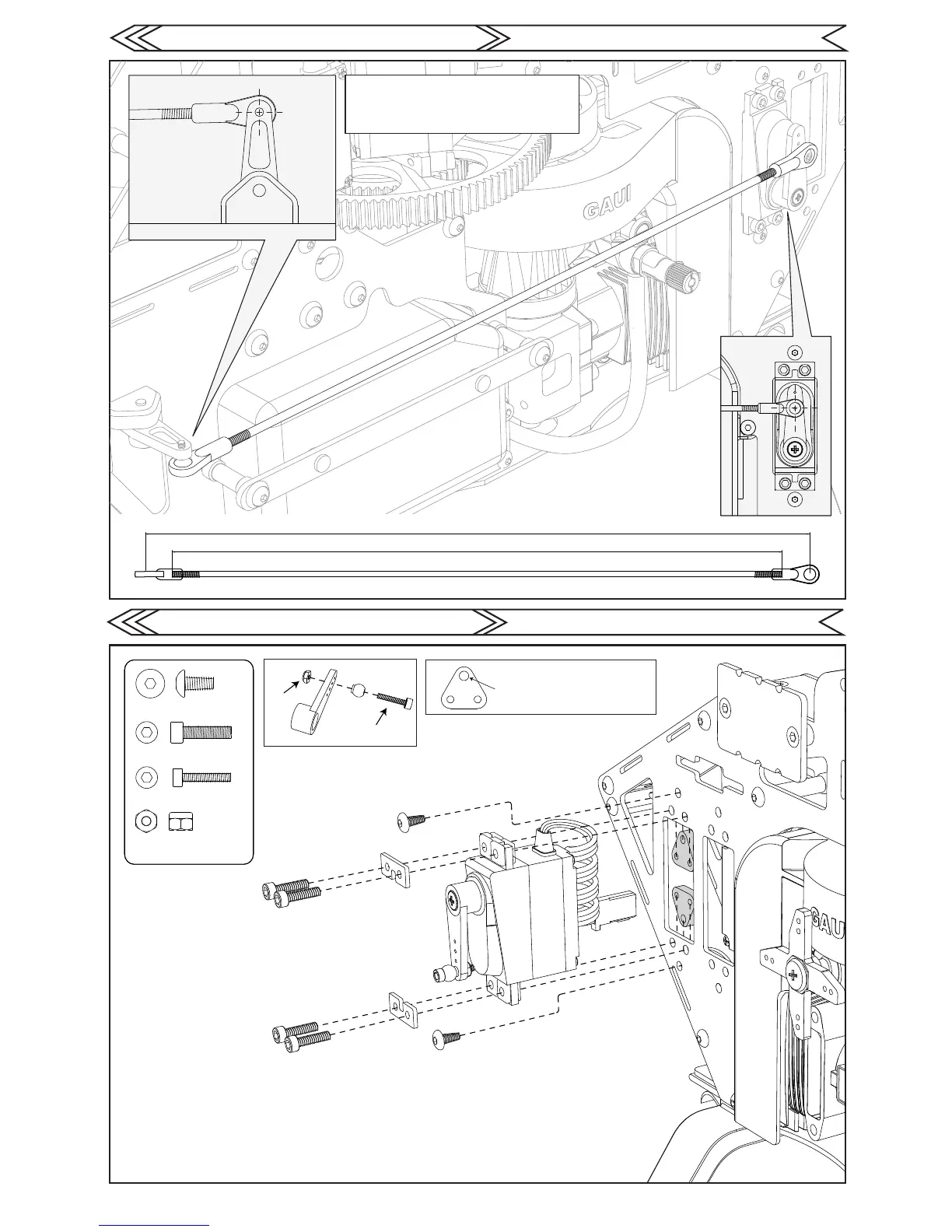

Tail push rod assembly
Throttle servo assembly
׏ಹܝఝಣ၇
ݷߟఝժ݉ᐡಣ၇
20
245.5mm
228mm
ԛαܝఝࡤ፝ጃᇰᙾ௦৵ᇅժ݉ᐡ࣐࠮ޣЬ҂Ȅ
When installing the pushrod please ensure that
the pushrod adapter and servo are leveled
Ø3x8
Ø3x8
M2.6x10
M2.6x10
M2.6x10
M2.6x10
Ø3x8........................x2
M2.6x10...................x4
M2x10........................x1
N2x4L........................x1
ಣ၇፝ݨཏτࢿ࣐Ø3x8螺絲孔。
When installing please notice the
larger hole is Ø3x8 thread hole.
M2x10
N2x4L
